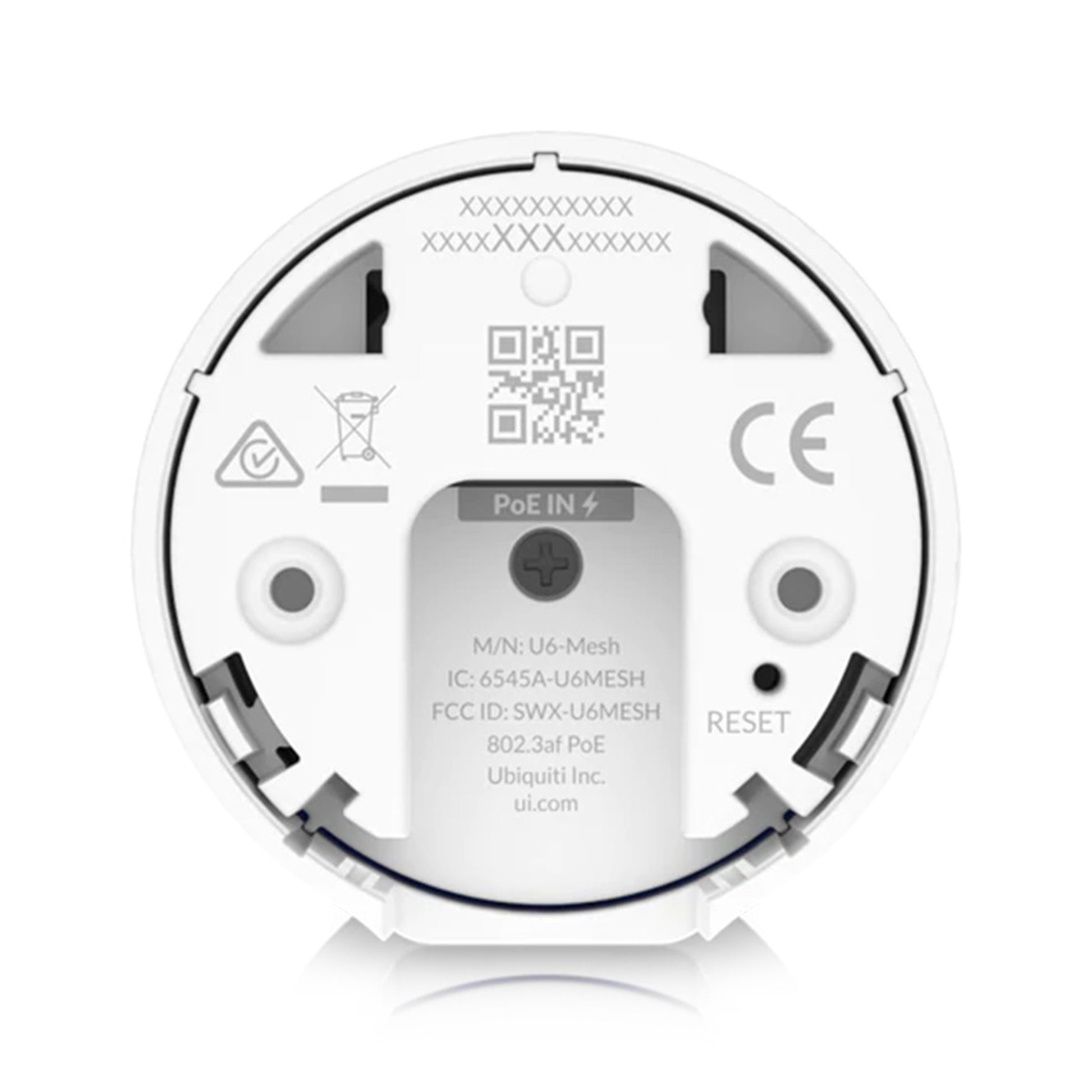

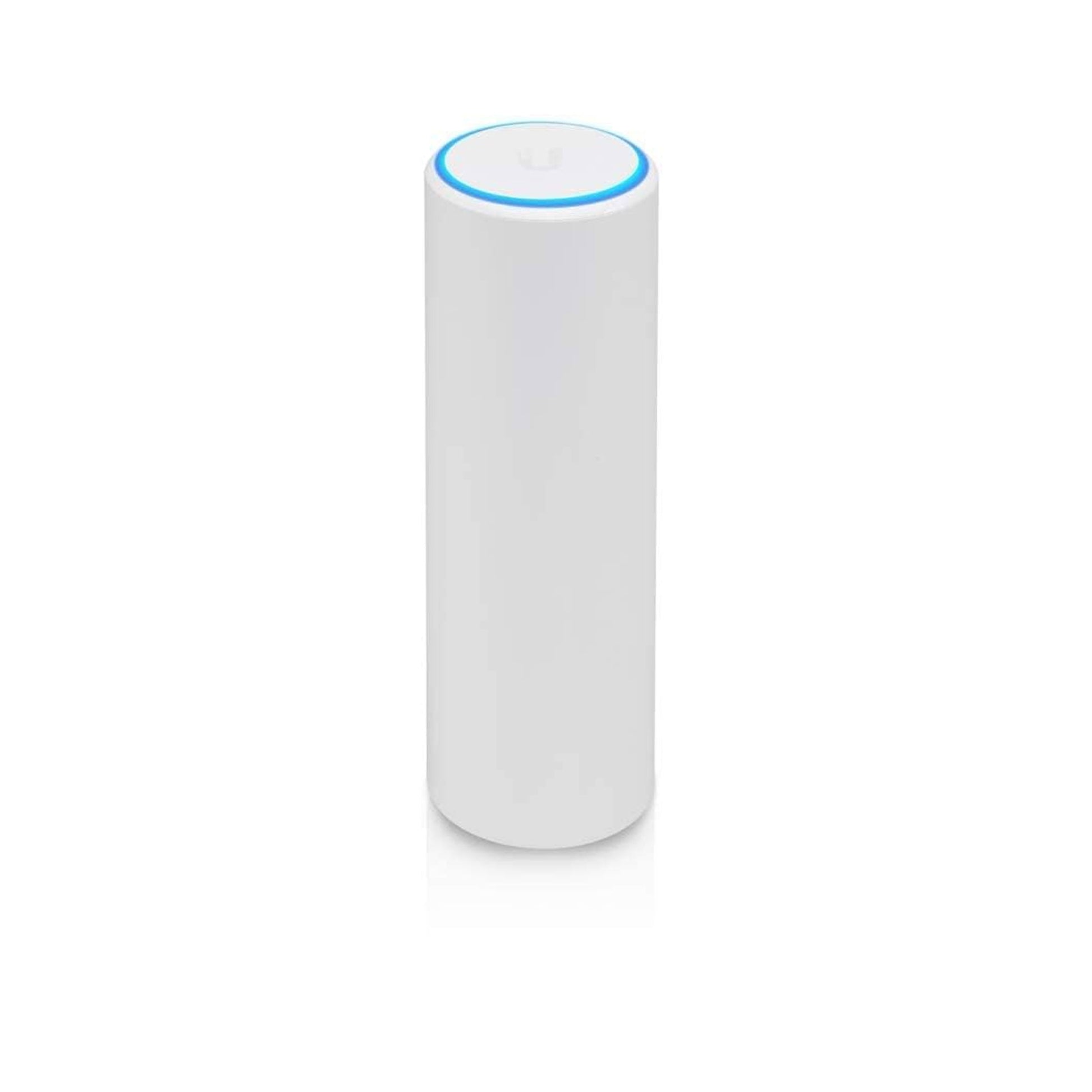

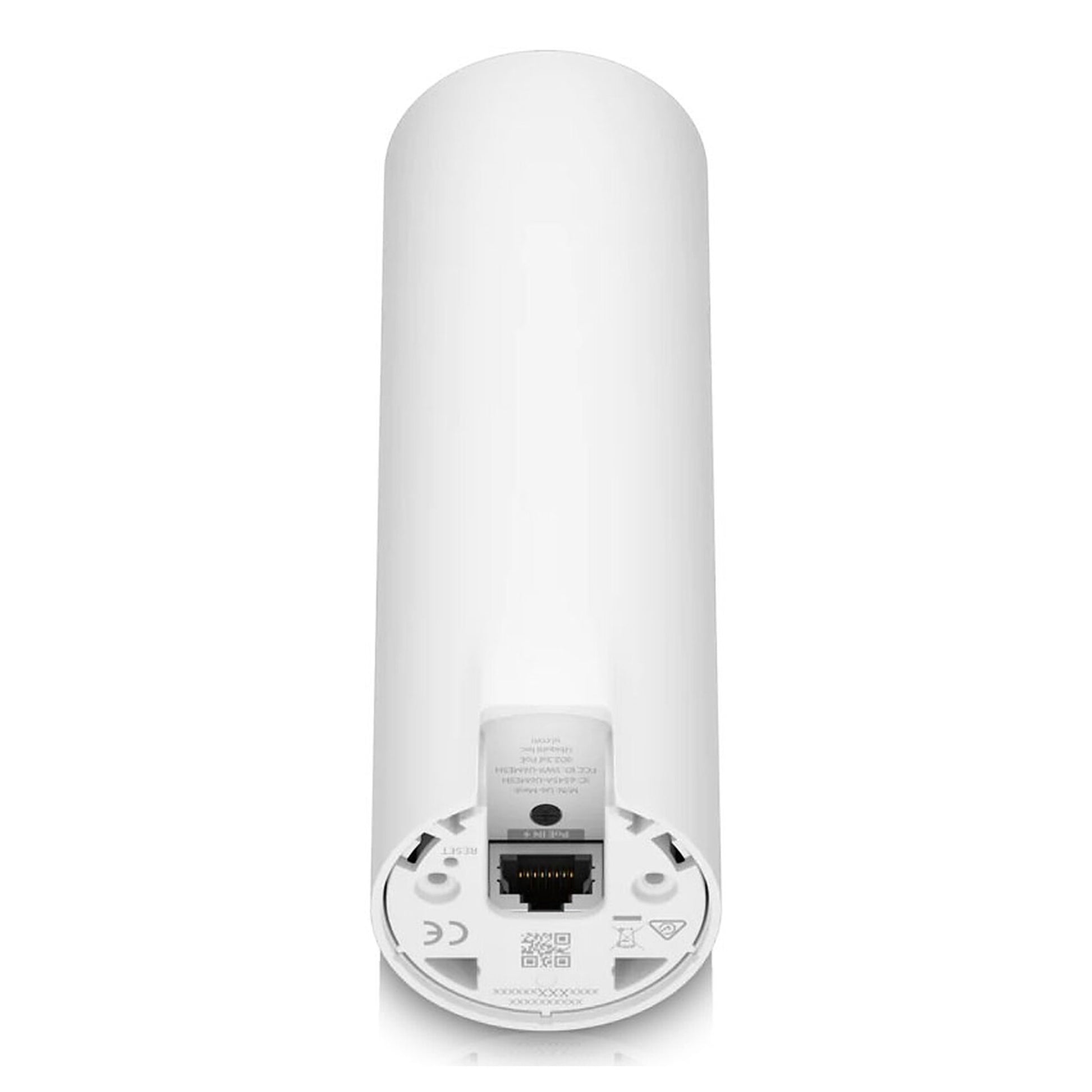

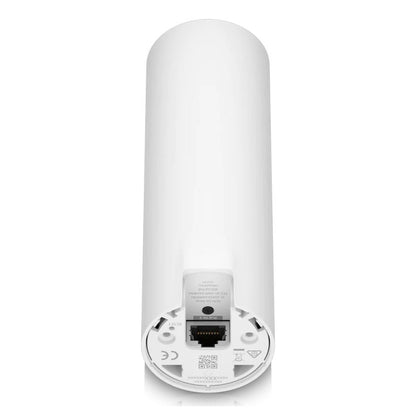

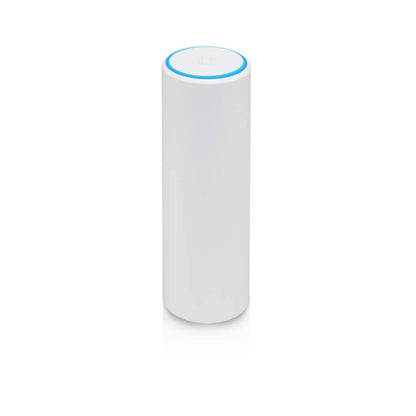

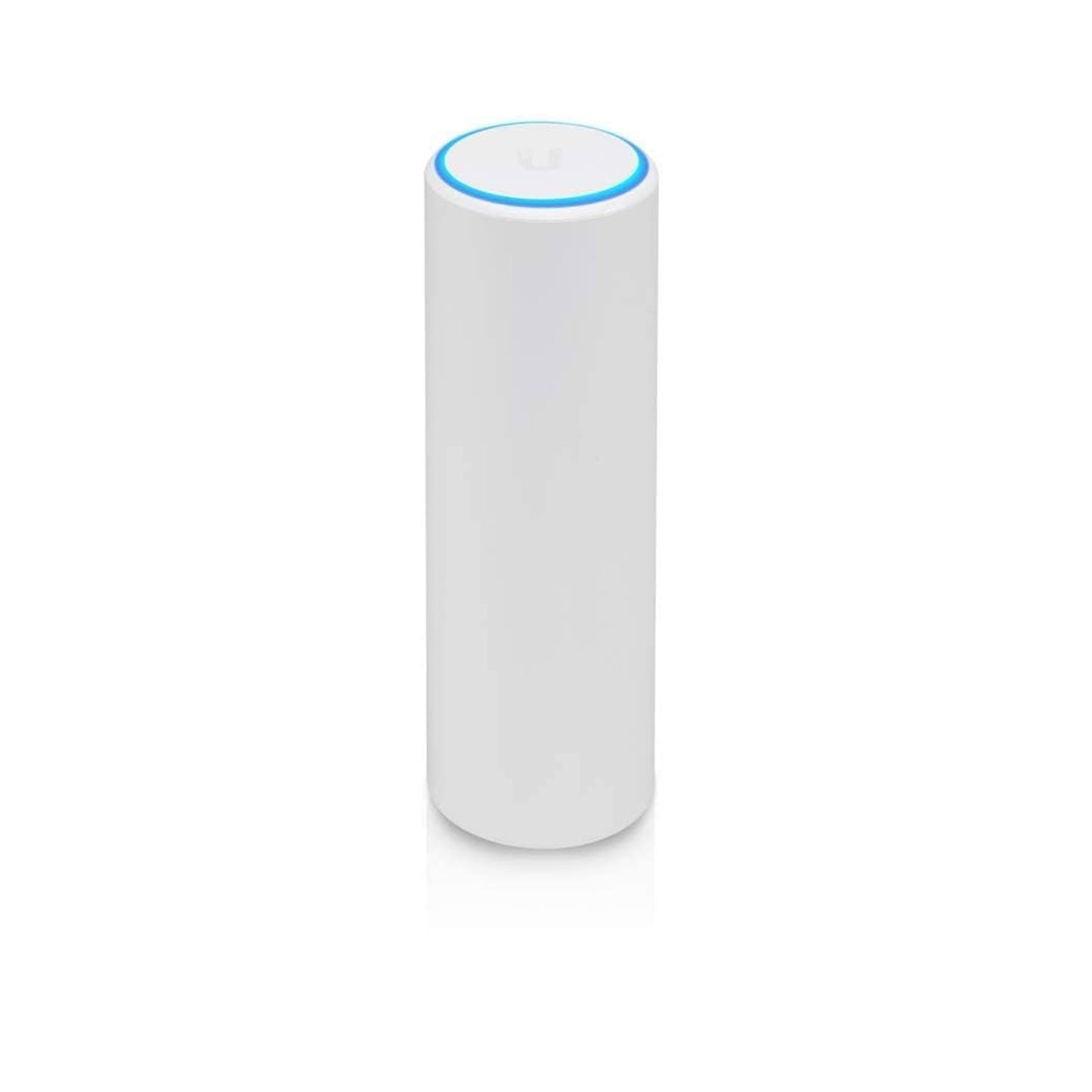

Ubiquiti U6 Mesh

Ubiquiti U6 Mesh

MVR4,500.00
Sold out

Availability: In stock
SKU: U6-Mesh
Vendor: Ubiquiti
Category: Wireless Access Points
Tags: networking Ubiquiti Unifi Wifi AP

Shipping

Free shipping

View full product details

Sleek, indoor/outdoor WiFi 6 AP with 6 spatial streams designed for mesh applications.

  • WiFi 6
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE
  • GbE uplink
  • Versatile tabletop, wall, and pole mounting
  • Weatherproof (outdoor exposed)*
*Weatherproof when installed LED side up with the included pole/wall mount accessory.



=

Mechanical
Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
Weight 400 g (14.1 oz)
Enclosure material Polycarbonate, aluminum
Mount material Polycarbonate
Weatherproofing IPX5
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE
Power supply UniFi PoE switch
48V, 0.32A PoE adapter (Included)
Supported voltage range 44—57V DC
Max. power consumption 13W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps (BW40)
4.8 Gbps (BW160)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
3 dBi
5 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, desktop, pole (Included)
Ceiling (Optional)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
