| Performace | |
| Switching Capacity | 176 Gbps |
| Total Non-Blocking Throughput | 88 Gbps |
| Forwarding Rate | 131 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | |
| ARP Entries | 4,000 |
| IPv4 Routes | 1,000 |
| Packet Buffer Size | 4 MB |
| Layer 3 Features | |
| DHCP Server(Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Ports Aggregation | Yes |
| STP & RSTP | Yes |
| QoS(DSCP) | Yes |
| Pro AV Profiles (Play,Dante,Q-SYS,NDI,SDVoE,Shure,AES67,Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
|
MAC-Based Port Restriction
|
Yes |
|
Port Isolation
|
Yes |
|
JumboFrames
|
Yes |
|
LLDP-MED
|
Yes |
|
Voice VLAN
|
Yes |
|
Loop Protection
|
Yes |
|
Hardware
|
|
|
PoE Ports
|
|
|
PoE+
|
40 |
|
PoE++
|
8 |
|
Max. PoE Wattage per Port by PSE
|
|
|
PoE
|
15.4W |
|
PoE +
|
32W |
|
PoE++
|
64W |
|
Max. Power Consumption
|
60W (Excluding PoE Output) 660W (Including PoE Output) |
|
Power Method
|
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
|
Power Input Method
|
AC input |
|
Power Supply
|
AC/DC, internal, 660W |
|
Supported Voltage Range
|
100—240V AC |
|
Management
|
Ethernet AR |
|
Heat Dissipation (Excluding PoE Output)
|
204.72 BTU/hr |
|
Weight
|
Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
|
Enclosure Material
|
SGCC steel |
|
Supported Rack Depth
|
400~1200 mm (15.7-47.2") |
|

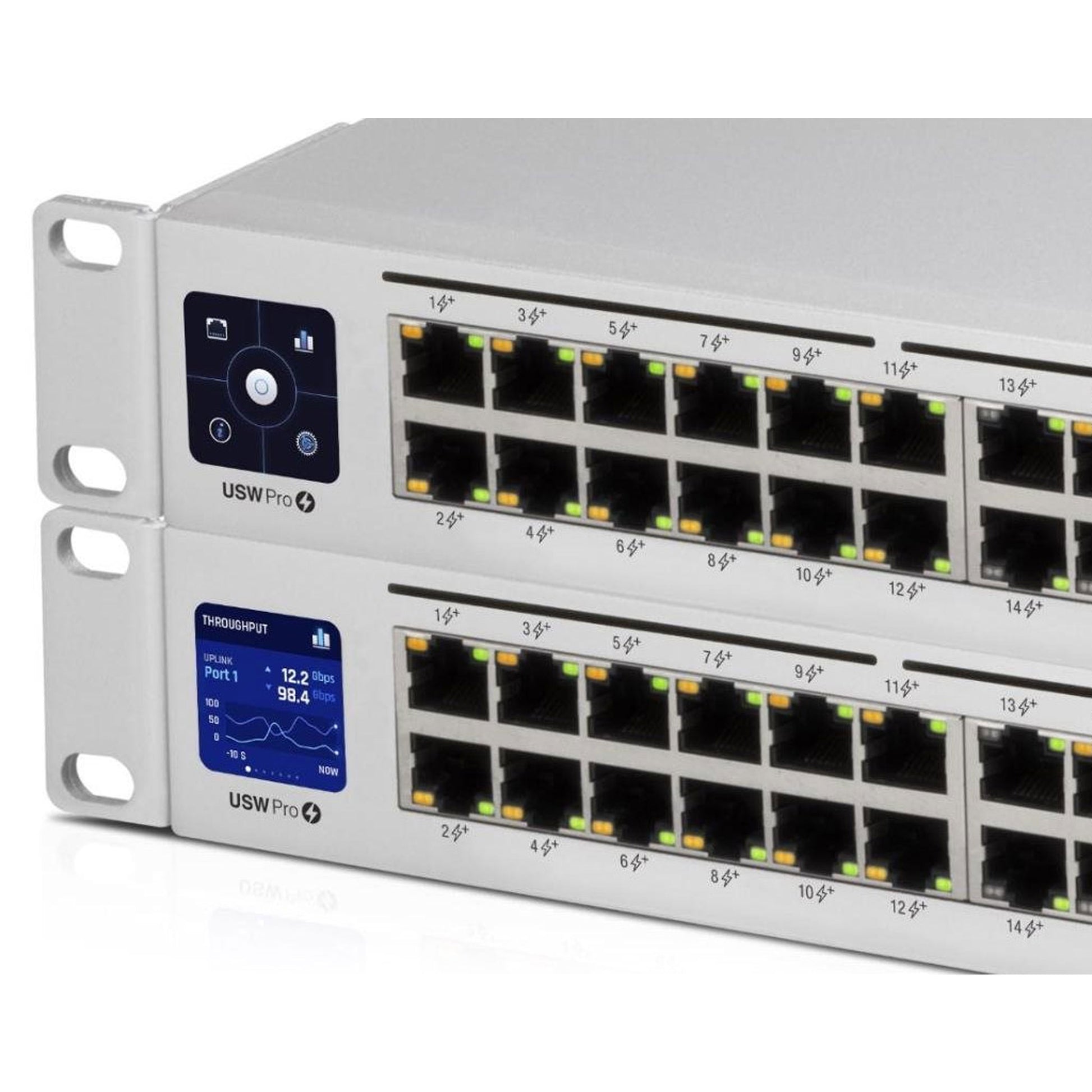

LCM Display
|
1.3" touchscreen |
|
Ambient Operating Temperature
|
-5 to 40° C (23 to 104° F) |
|
ESD/EMP Protection
|
Air: ± 16kV, contact: ± 12kV |
|
Ambient Operating Humidity
|
10 to 90% noncondensing |
|
Certifications
|
CE, FCC, IC |
