Key Features

• 24 x Gigabit Ethernet Ports

• 16 x PoE+ Ports | 8 x PoE++ Ports

• 2 x 10 Gb/s SFP+ Ports

• 88 Gb/s Switching Capacity

• 65.47 Mpps Forwarding Capacity

• Rack-Mountable Design

• 1.3" Touchscreen Display

• Passive Cooling

• UniFi Controller Compatible

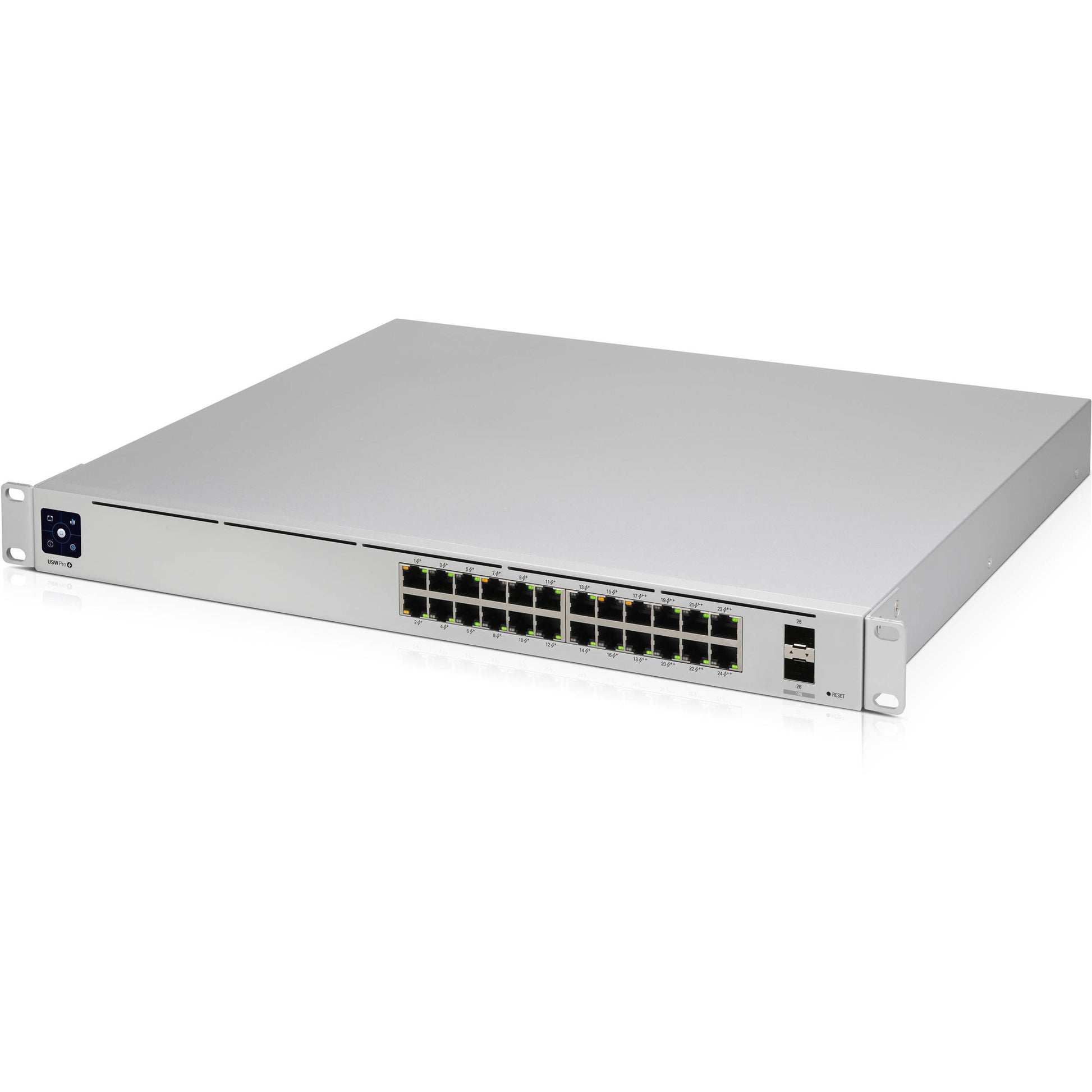

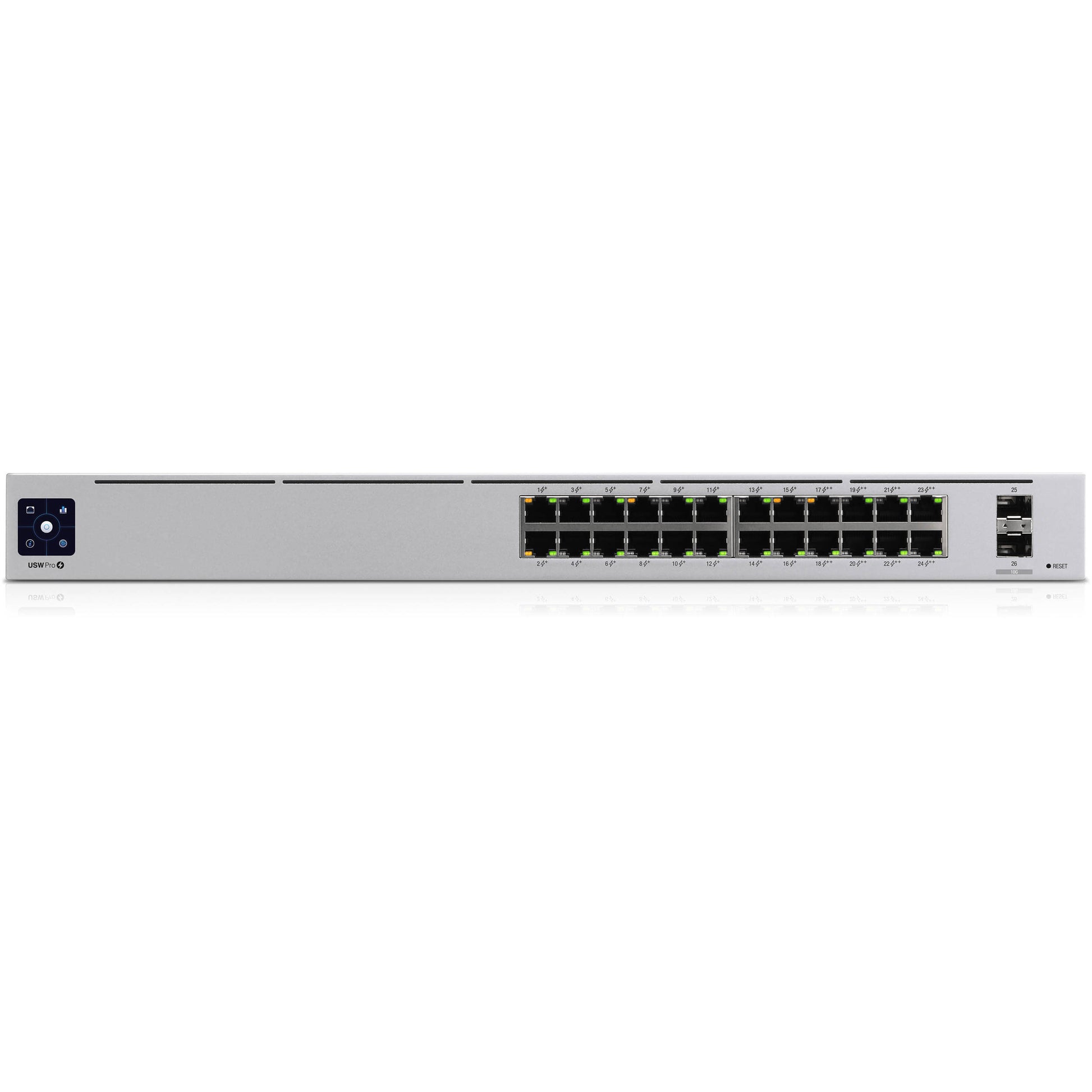

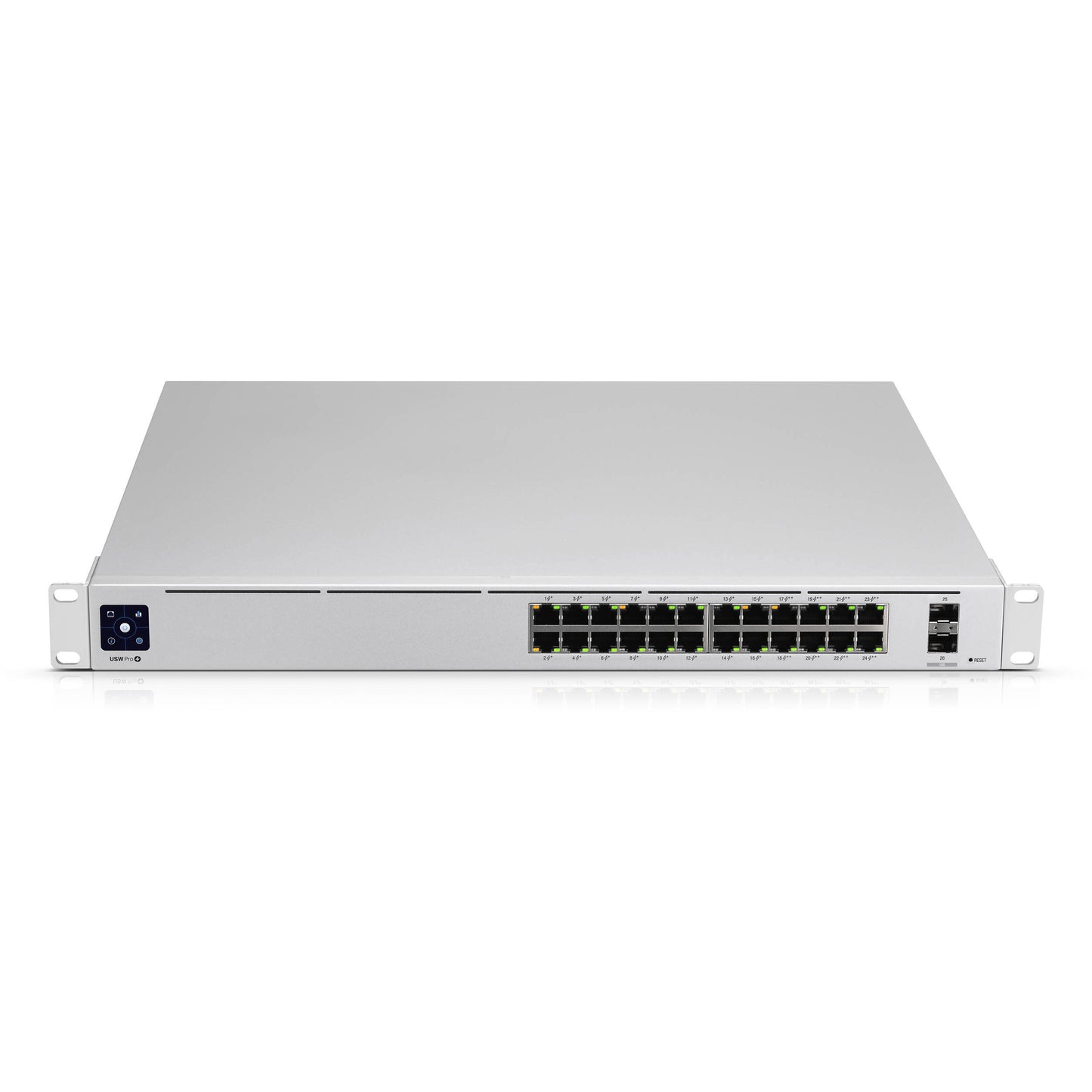

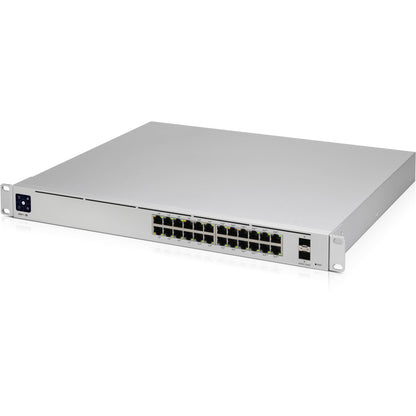

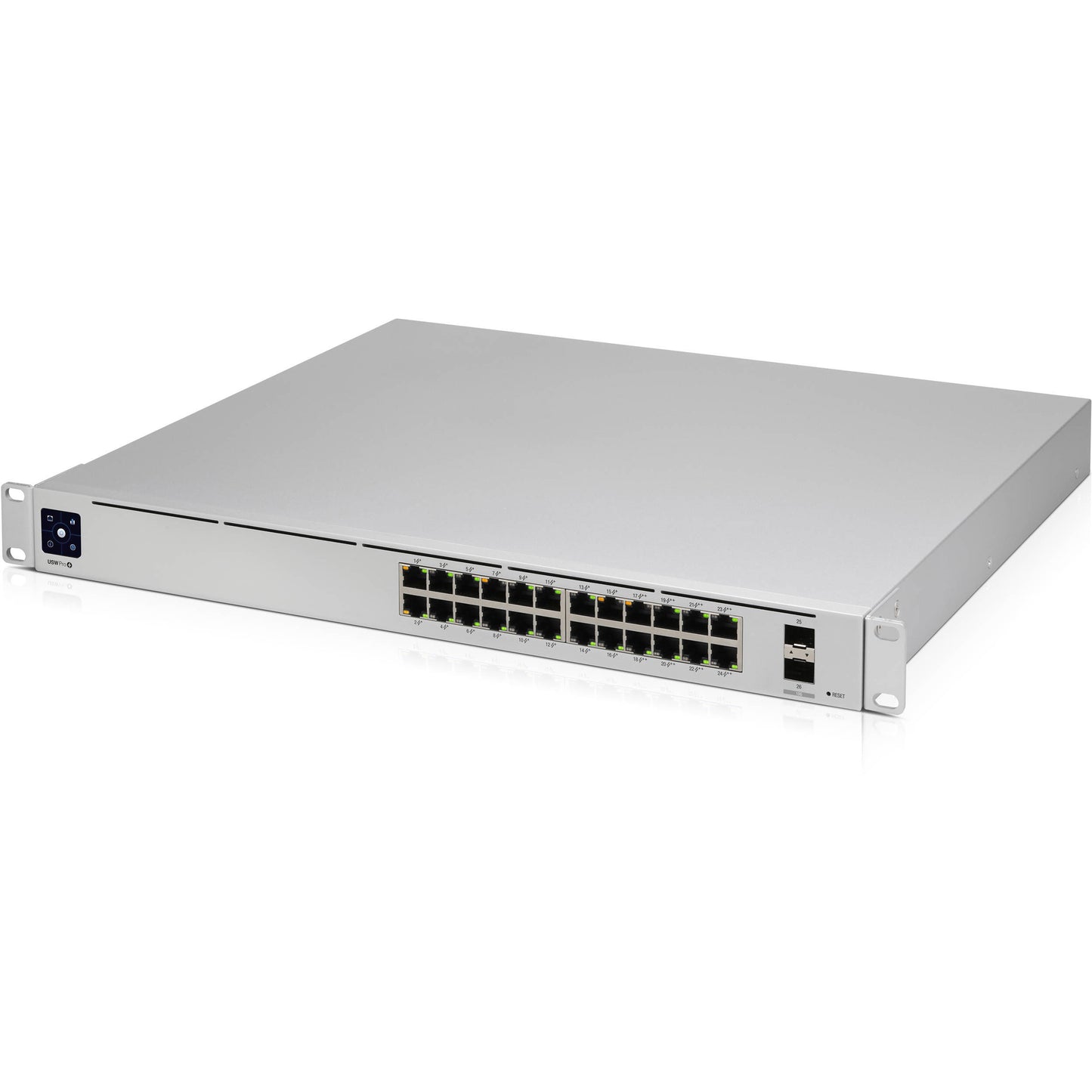

Expand your business's network with the fully manageable second-generation UniFi Pro PoE 24-Port Gigabit Managed PoE Network Switch with SFP+ from Ubiquiti. Designed with Layer 3 protocol support, the passively cooled 24-port Gigabit switch features a total power budget of 400W across 16 32W PoE connectors and eight 64W PoE++ ports for power-intensive devices such as high-resolution network security cameras. Each port delivers 44 Gb/s non-blocking throughput with a 88 Gb/s switching capacity and a 65.47 Mpps forwarding rate. Two 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Switching Performance

The second-generation UniFi switch offers a 65.47 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Pro Switch has a non-blocking throughput of 44 Gb/s with a 88 Gb/s switching capacity.

Layer 3

The UniFi Pro PoE Switch features Layer 3 protocol capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

SFP+ Fiber Connectivity

Connect high-speed network storage or set up a long-distance uplink using the 10 Gb/s SFP+ ports.

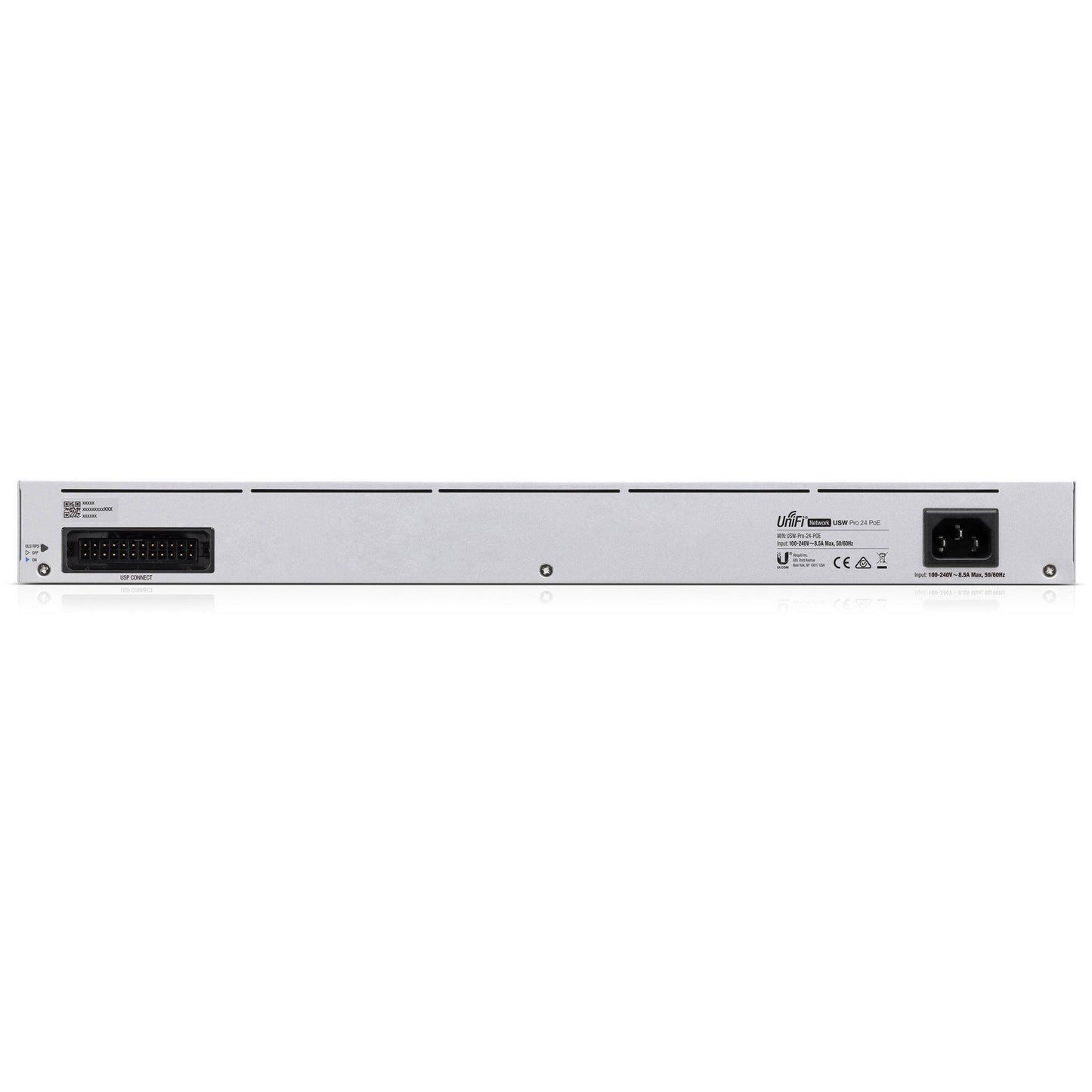

Redundant Power

The UniFi Pro PoE Switch supports has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails.

UniFi Controller

Network Management

The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.

Multi-Site Management

You may use a single instance of the UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites. Each site is logically separated with its own network monitoring, configuration, maps, statistics, and administrator accounts.

Switch Configuration

Access and configure any managed UniFi Switch using the UniFi Controller. Its features include:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status

View the status information for each port, including:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Detailed Analytics

Ubiquiti's Deep Packet Inspection (DPI) engine tracks which applications and IP addresses are using the most bandwidth. Additionally, the UniFi Network Controller provides configurable reporting and analytics to efficiently manage user populations and speed up troubleshooting.
