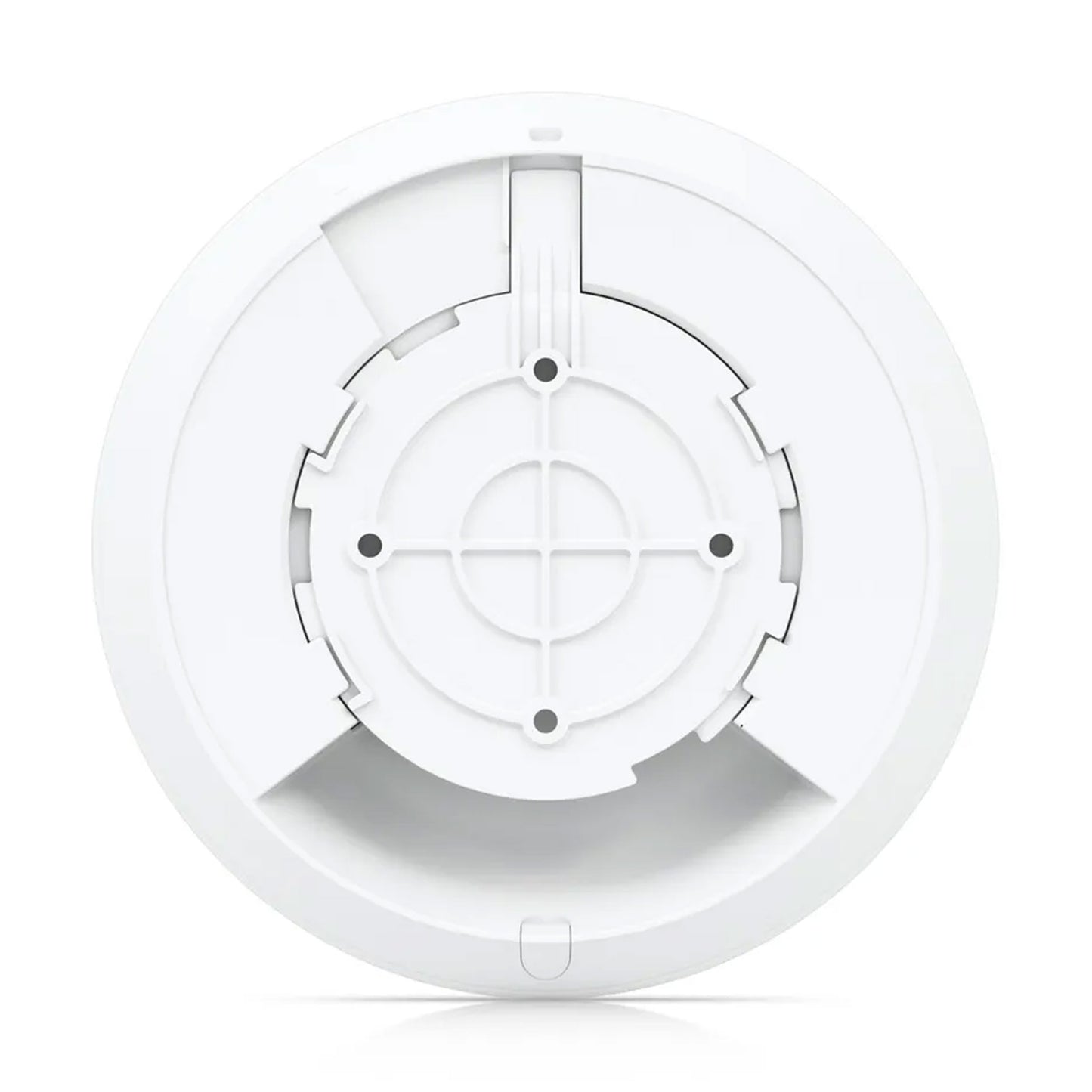

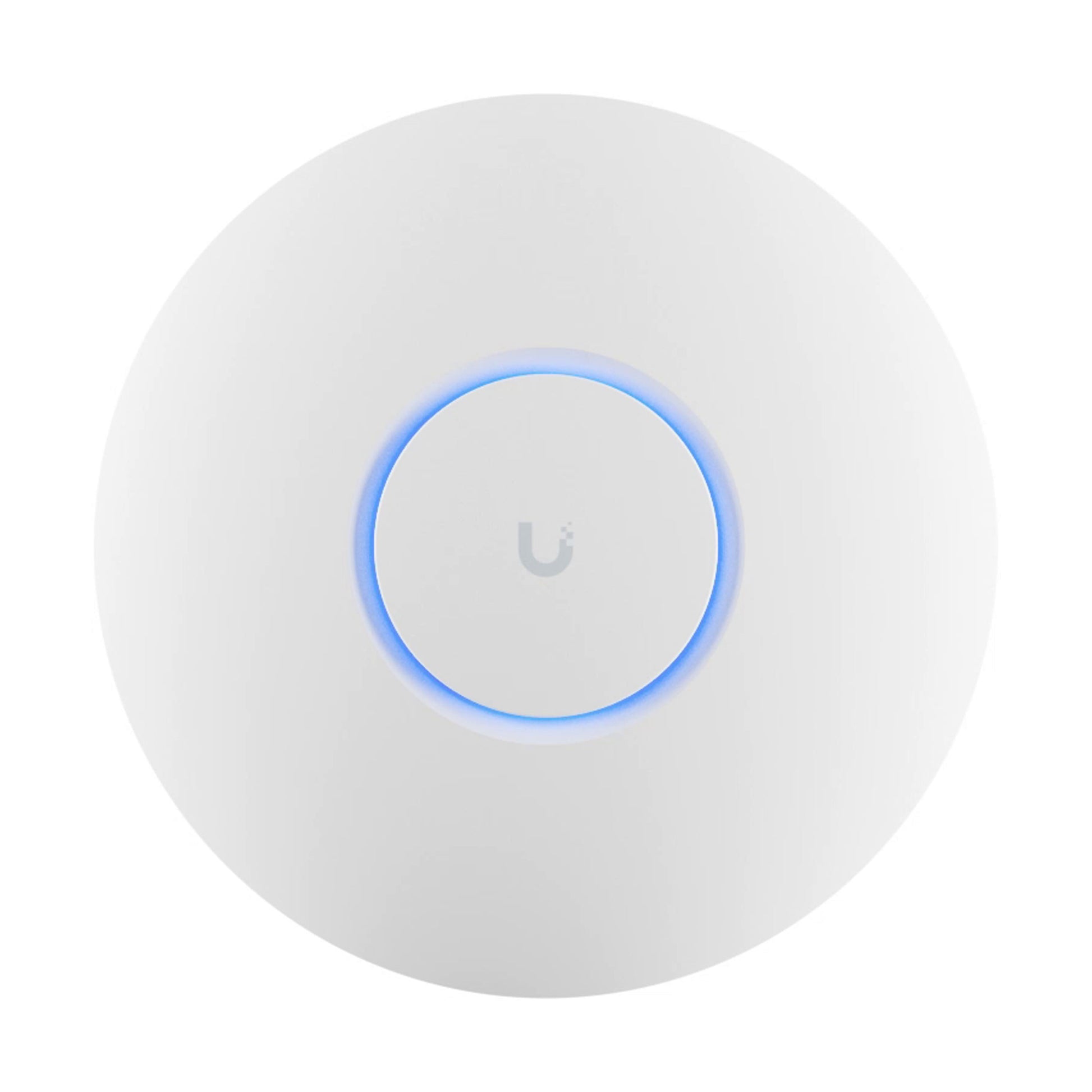

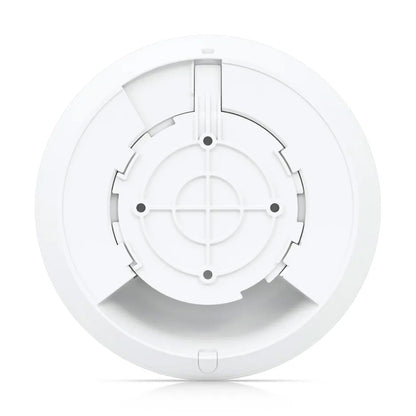

Ubiquiti Networks U6+ Access Point

Ubiquiti Networks U6+ Access Point

MVR3,000.00
Sold out

Availability: In stock
SKU: U6+
Vendor: Ubiquiti
Category: Wireless Access Points
Tags: networking Ubiquiti Unifi Wifi AP

Shipping

Free shipping

View full product details

Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.

  • WiFi 6
  • 4 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE
  • GbE uplink
Mechanical
Dimensions Ø160 x 33 mm (Ø6.3 x 1.3")
Weight Without mount: 338 g (0.8 lb)
With mount: 413 g (0.9 lb)
Enclosure material Polycarbonate, aluminum
Mount material ABS, SGCC steel
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
23 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps (BW40)
2.4 Gbps (BW160)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
3 dBi
5.4 dBi
–
LEDs White/blue
Button Factory reset

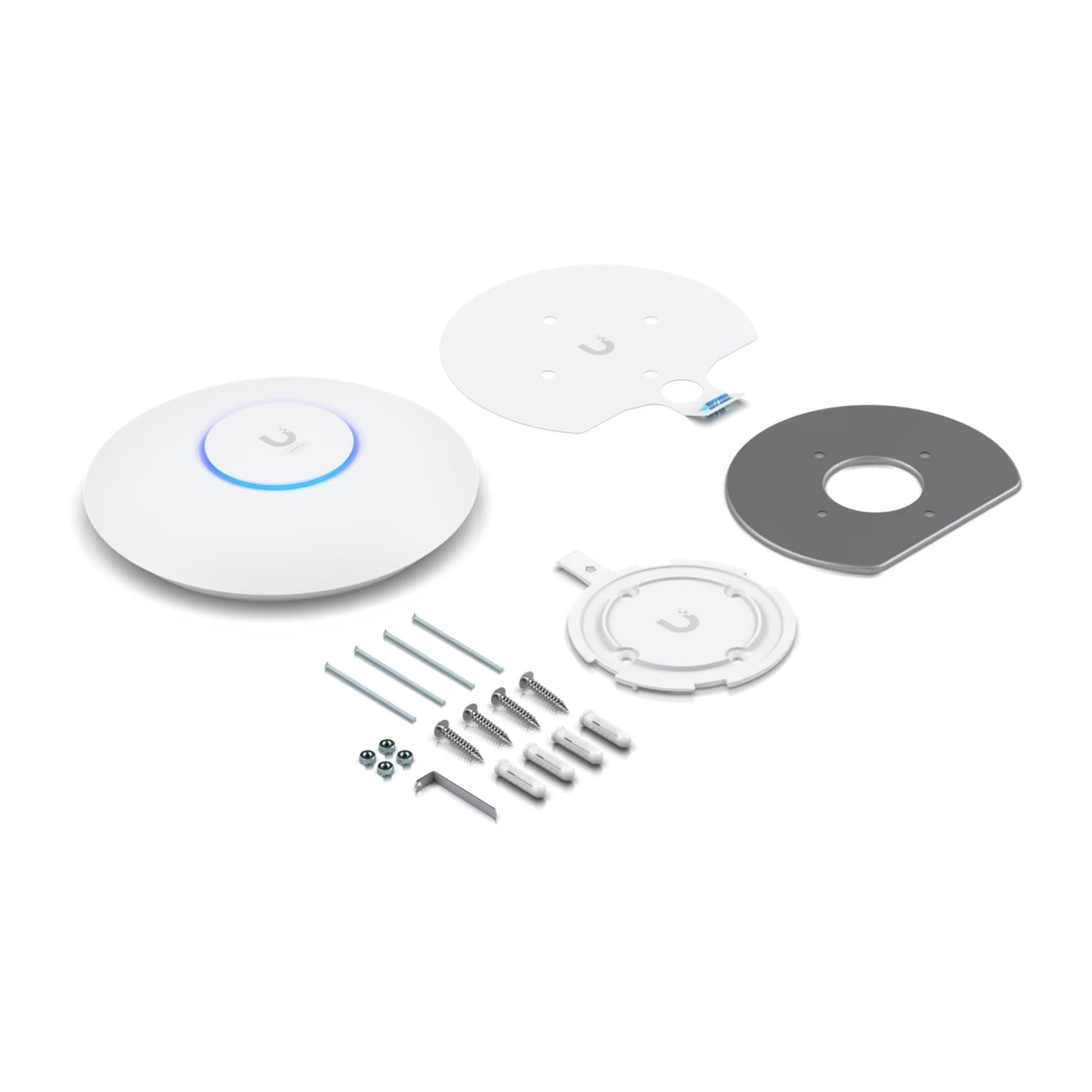

Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
