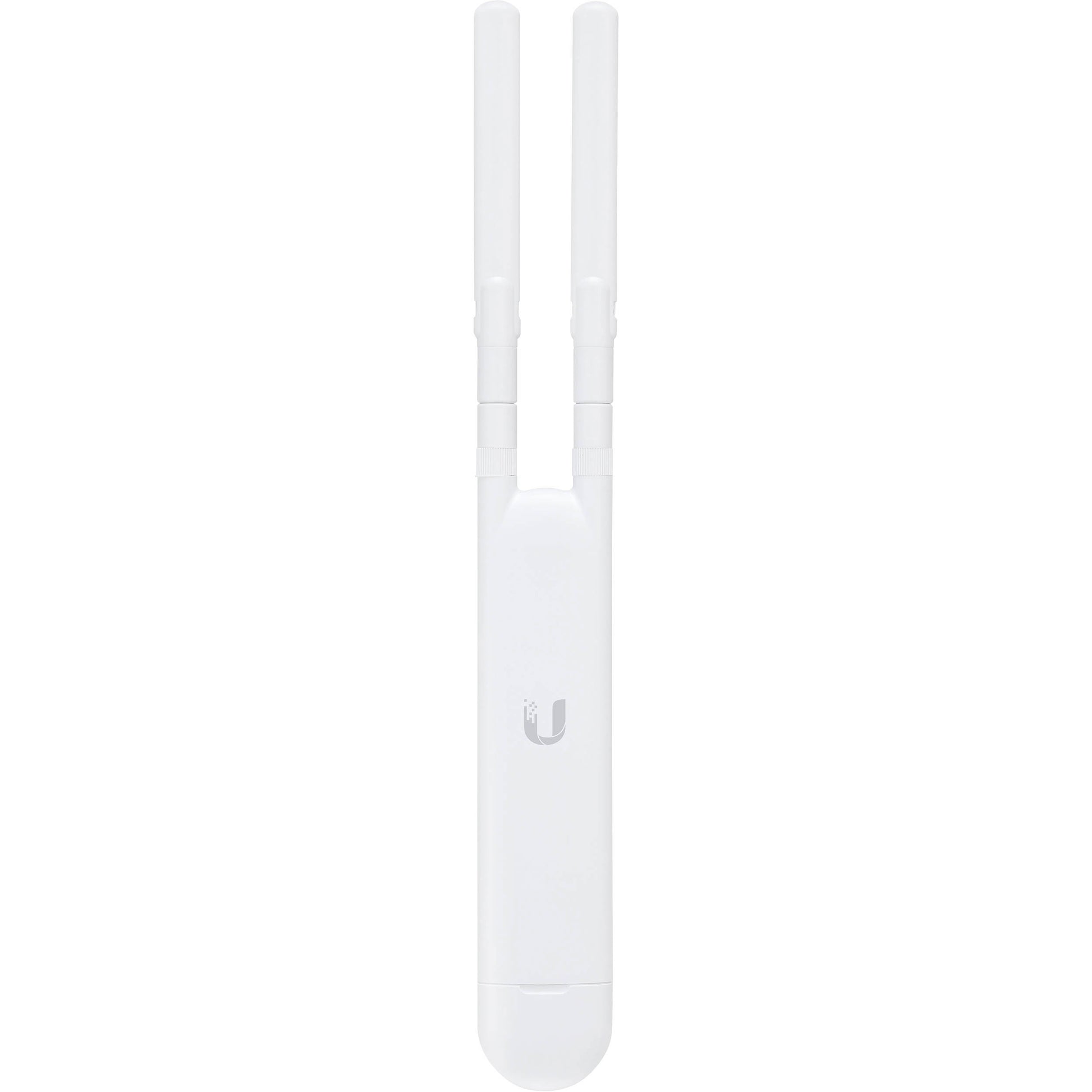

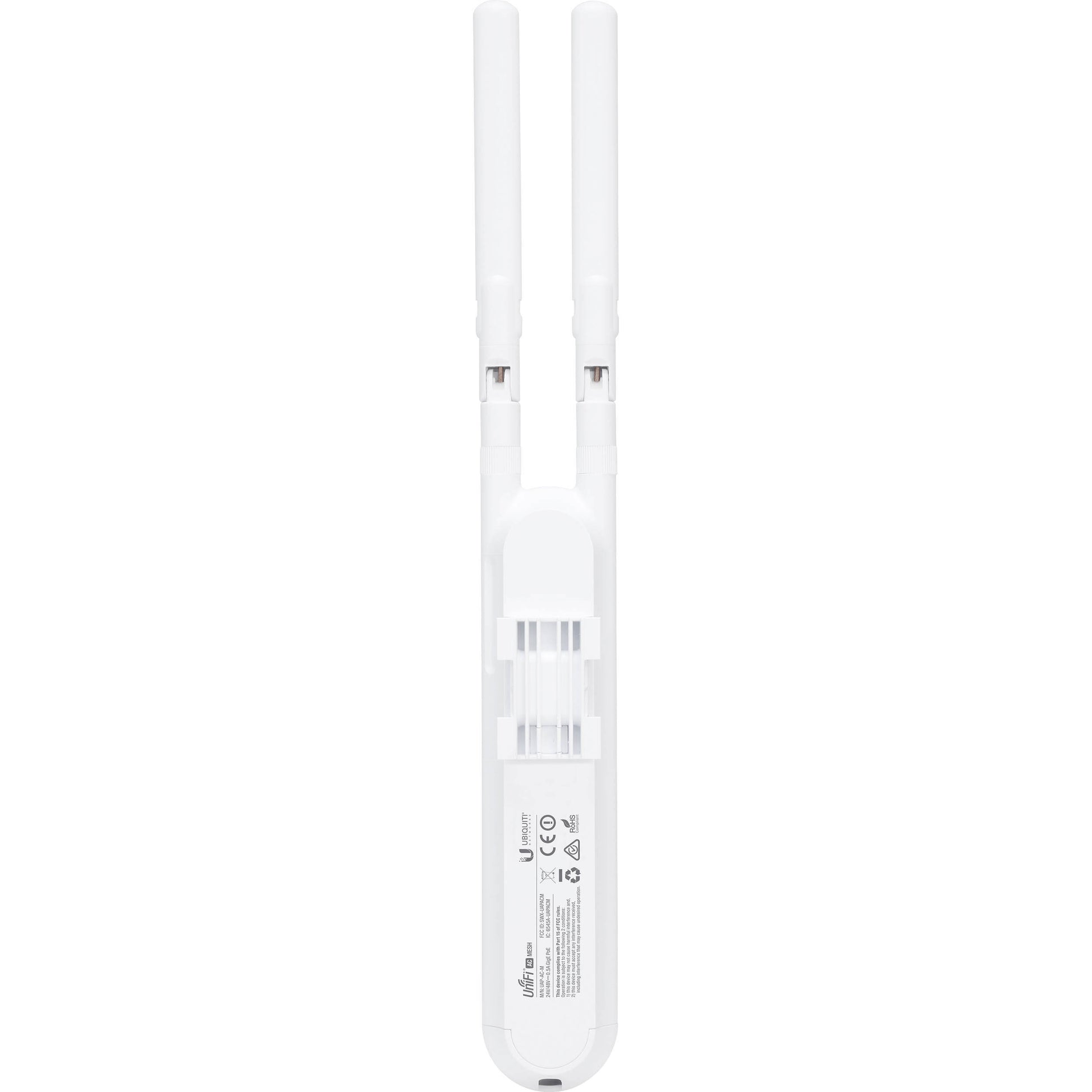

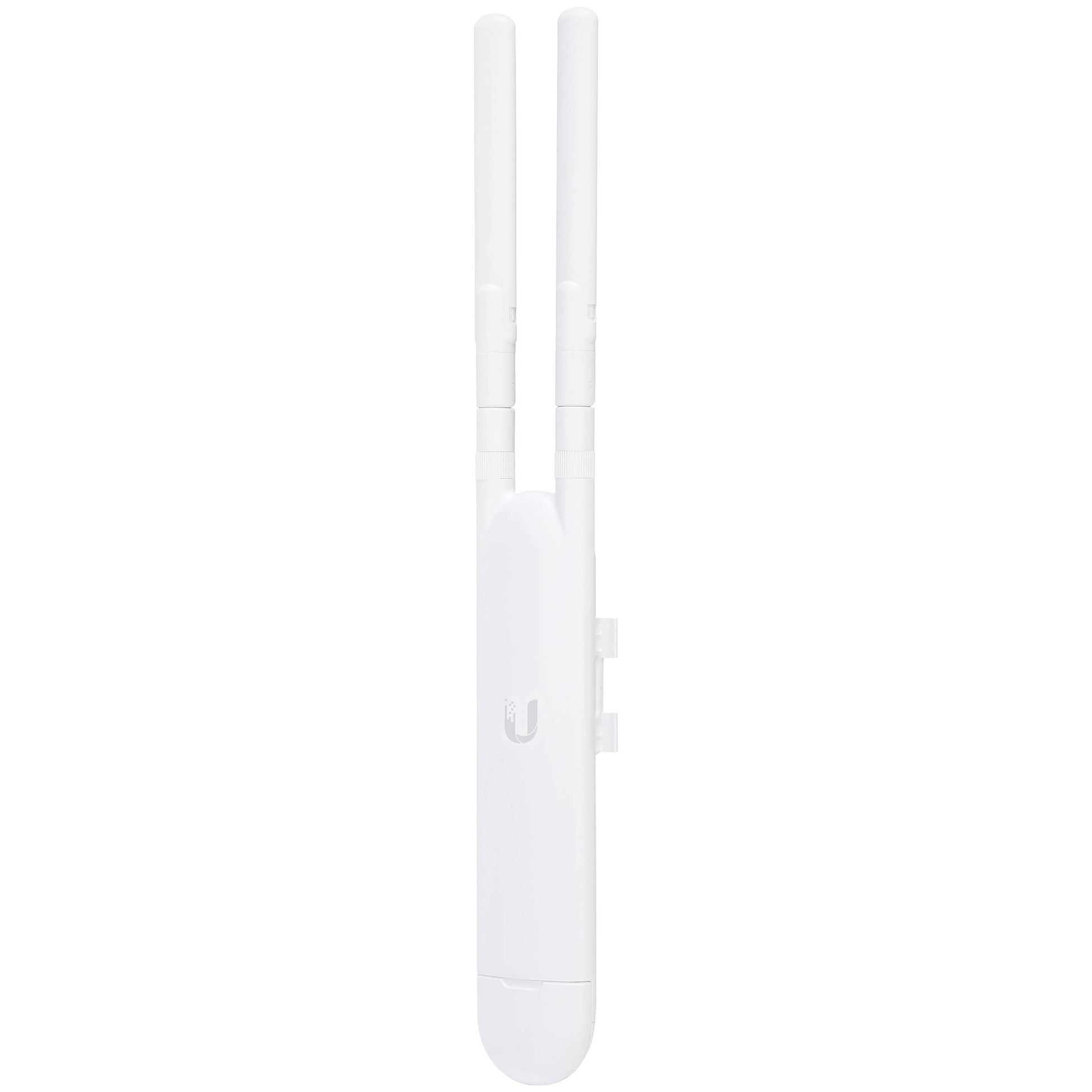

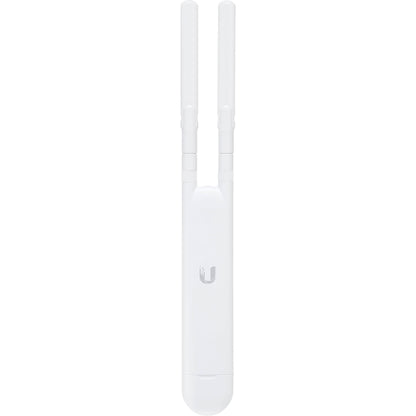

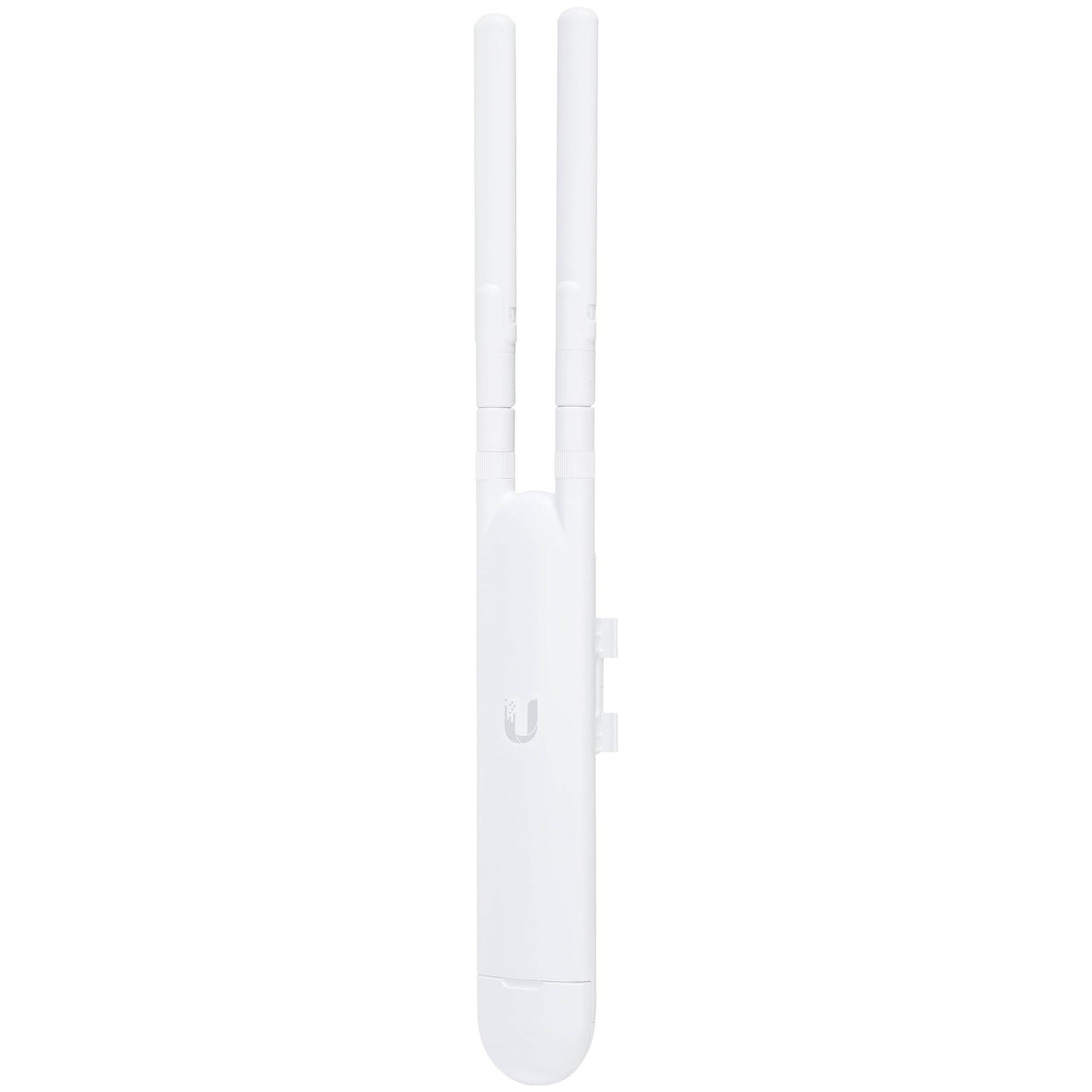

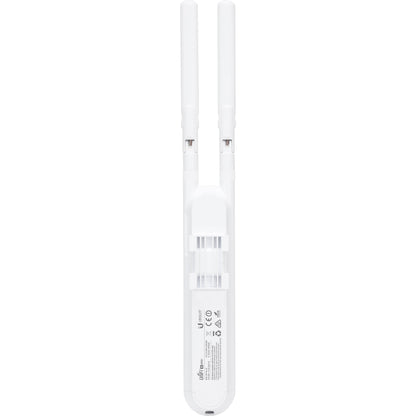

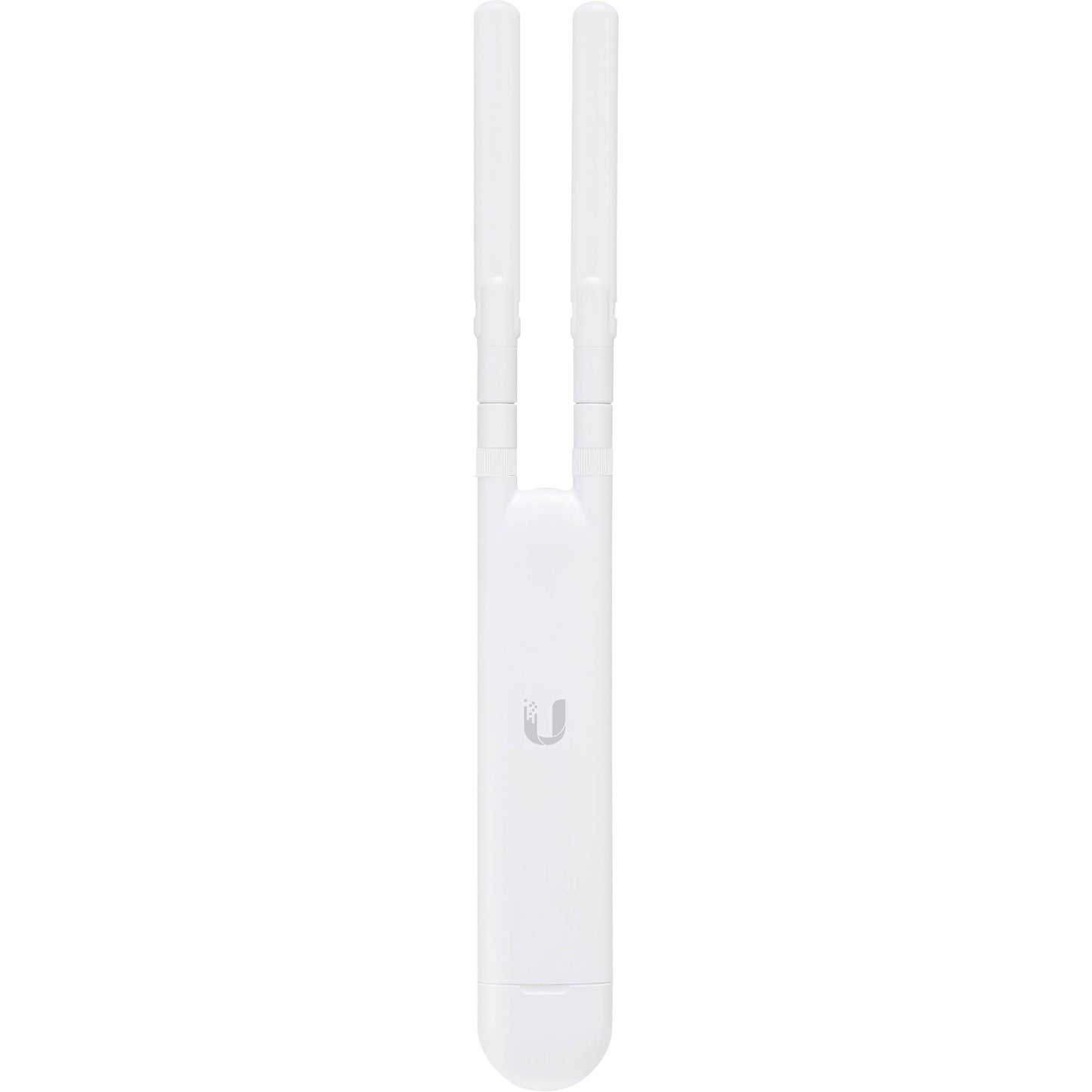

Ubiquiti AC Mesh

Ubiquiti AC Mesh

MVR2,700.00
Sold out

Availability: In stock
SKU: UAP-AC-M
Vendor: Ubiquiti
Category: Wireless Routers
Tags: networking Ubiquiti Unifi Wifi

Shipping

Free shipping

View full product details

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

Key Features

  • 802.11 a/b/g/n/ac Wi-Fi Standards
  • Range of up to 600'
  • 1 x 10/100/1000 Ethernet Port
  • UniFi Controller Software
  • 2 x Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • 200+ Concurrent Clients
  • Reset Button
  • CE, FCC, IC Certified
Category Specification Value
Key Specs Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Key Specs Throughput 1167 Mb/s Total
2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s

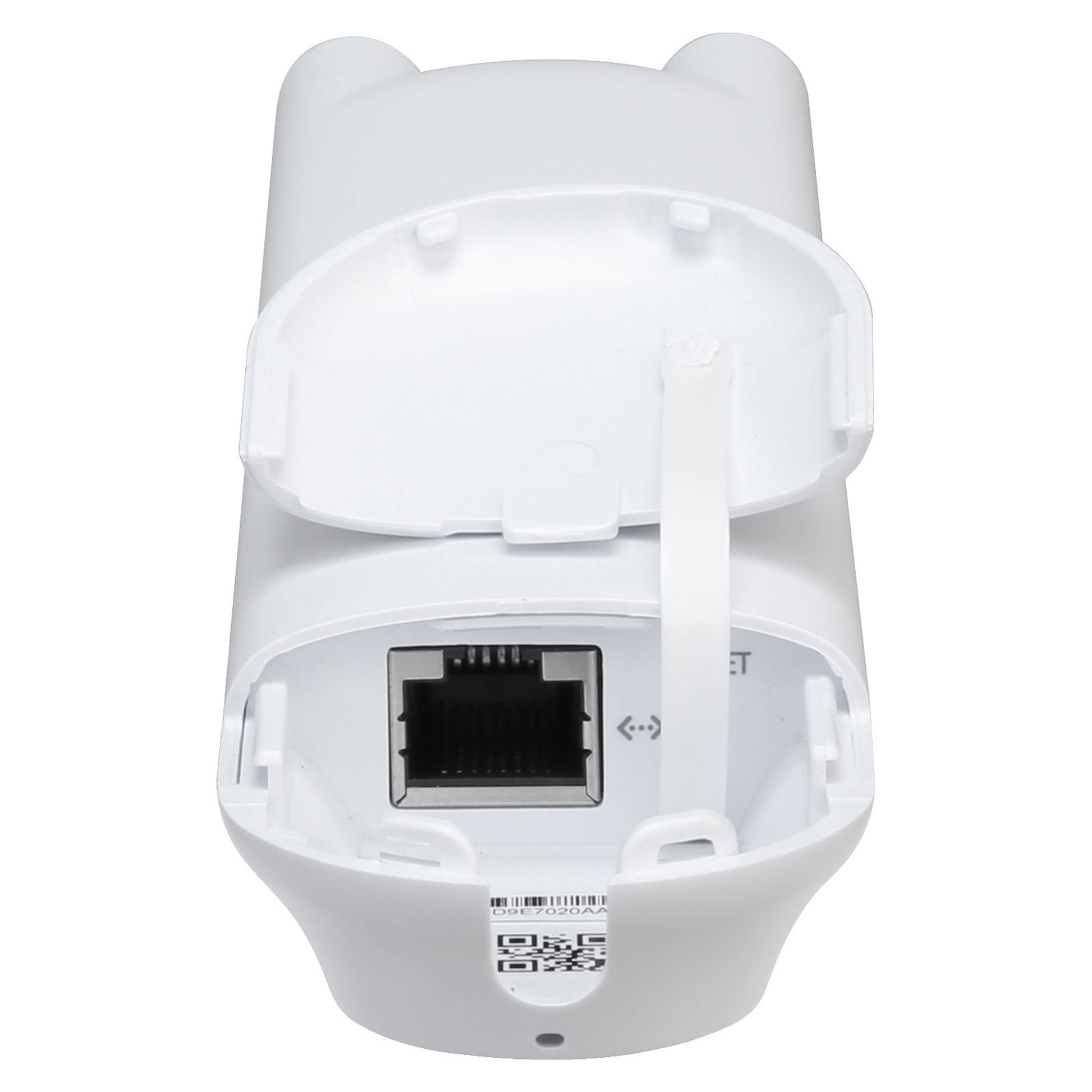

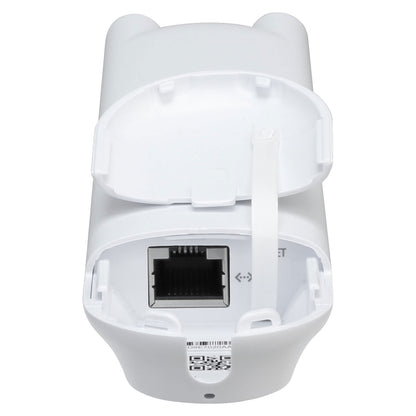

Key Specs Inputs/Outputs 1x RJ45 Gigabit Ethernet
Wireless Number of Antennas 2
Wireless Antenna Gain 3 to 4 dBi
Wireless Transmit Power 20 dBm
Wireless Supported Protocols WMM

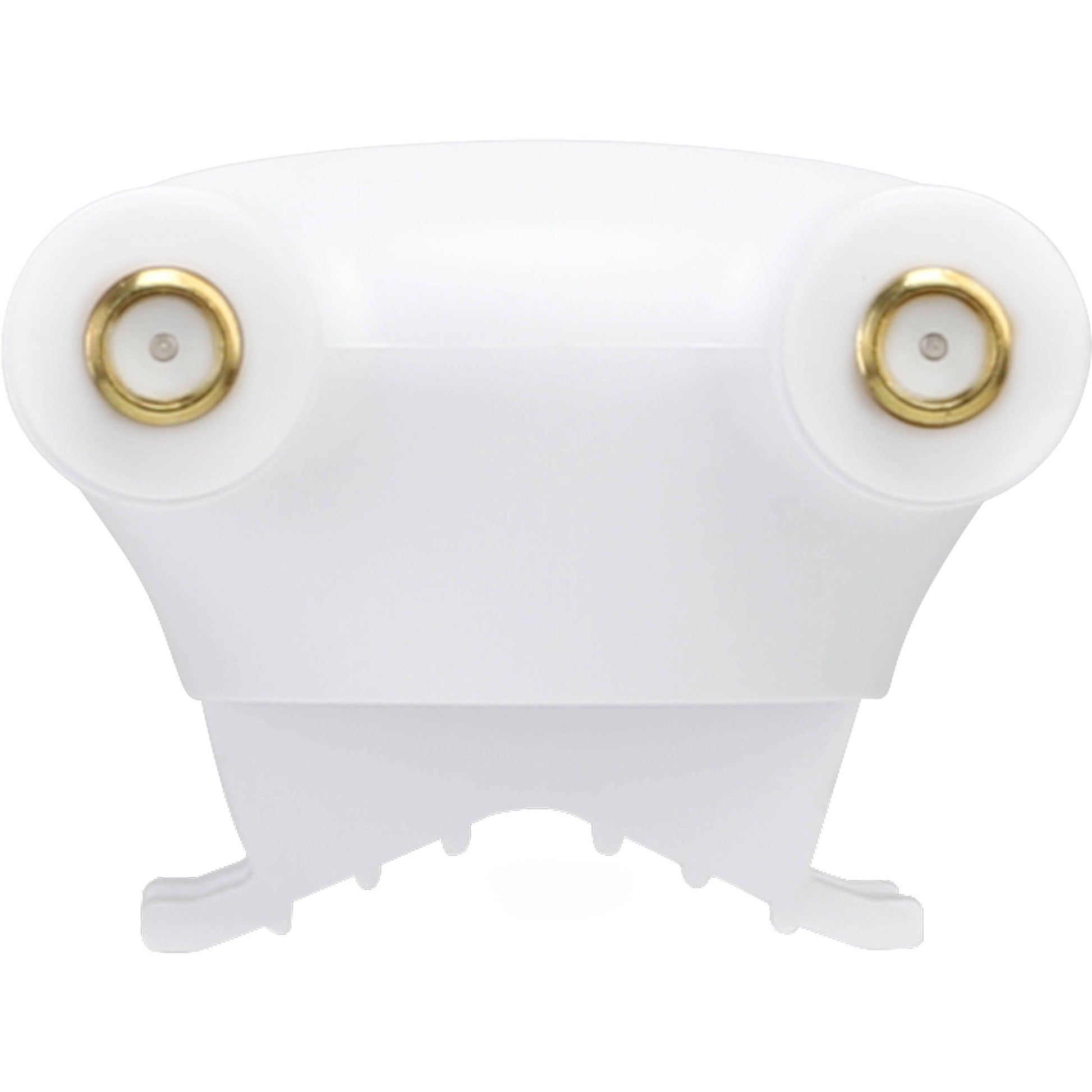

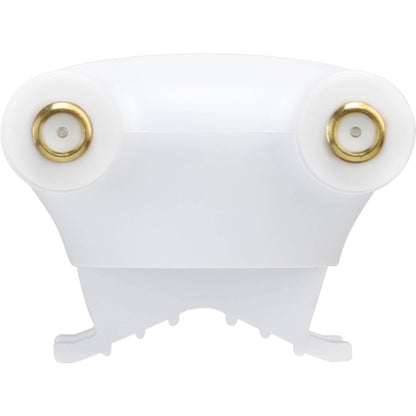

Wireless Antenna Placement External (Unspecified Connection Type)
Wireless Bluetooth Yes
Security Wireless Security AES, TKIP, WEP, WPA, WPA-PSK, WPA2
Security Lock Slot No
Management Operation Modes Access Point
Management Supported Clients 200
Management Max SSIDs Supported 4
Management Mobile App Compatible Yes: Android & iOS
App Name: UniFi
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
Hardware Media Card Reader Yes
Hardware Supported IEEE Standards 802.11i, 802.3af (PoE 15.4 W)
Electrical Input Power 24 VDC
Electrical Power Consumption 8.5 W
General Certifications CE, FCC, IC, UKCA
General Operating Conditions -22 to 158°F / -30 to 70°C at 5 to 95% Humidity
General Mount Options Pole, Wall
General Dimensions 13.9 x 1.8 x 1.4" / 35.3 x 4.6 x 3.4 cm
General Weight 0.3 lb / 0.1 kg
