Overview

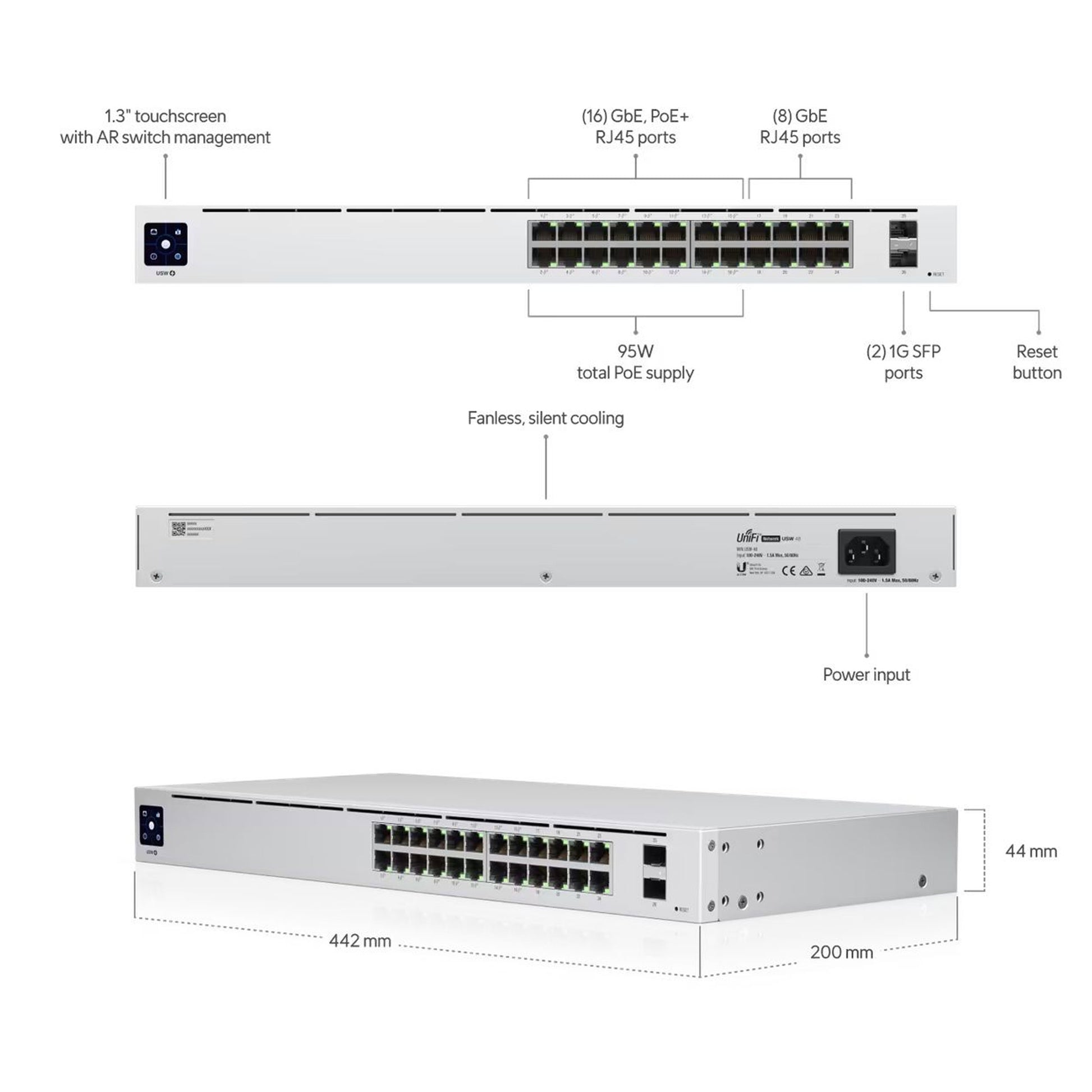

• Dimensions : 442 x 200 x 44 mm(17.4 x 7.9 x 1.7")

• Port Layout

  • 1 GbE RJ45  : 24 (16 PoE+)

  • 1G SFP : 2

• Max. PoE Output : Up to PoE+

• Total PoE Availability : 95W

• Form Factor : Rack mount (1U)
• Performance

• Switching Capacity : 52 Gbps

• Total Non-Blocking Throughput : 26 Gbps

• Forwarding Rate : 39 Mpps

• Supported VLANs : 1,000

• MAC Address Table Size : 8,000

• Packet Buffer Size : 0.5 MB

• Layer 2 Features

• LACP Port Aggregation : Yes

• STP & RSTP : Yes

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port) : Yes

• IGMP Snooping : Yes

• 802.1X Control : Yes

• MAC-Based ACLs & Device Isolation  : Yes

• DHCP Snooping & Guarding : Yes

• Egress Rate Limit : Yes

• Flow Control : Yes

• Storm Control : Yes

• Multicast & Broadcast Rate Limiting : Yes

• MAC Address Blocking : Yes

• IP-Based ACLs & Network Isolation : Yes

• MAC-Based Port Restriction : Yes

• Port Isolation : Yes

• Port Mirroring : Yes

• Jumbo Frames : Yes

• LLDP-MED : Yes

• Voice VLAN : Yes

• Loop Protection : Yes

• Hardware

• PoE Ports

  • PoE+ : 16

• Max. PoE Wattage per Port by PSE

  • PoE : 15.4W

  • PoE+ : 32W

• Max. Power Consumption:

  • 25W (Excluding PoE output)

  • 120W (Including PoE Output)

• Power Method : Universal input, 100—240V AC, 50/60 Hz

• Power Input Method : AC input

• Power Supply : AC/DC, internal, 120W

• Supported Voltage Range  : 100—240V AC

• Management :

  • Ethernet

  • AR

• Heat Dissipation (Excluding PoE Output) : 85.3 BTU/hr

• Weight :

  • Without mounting brackets: 3 kg (6.6 lb)

  • With mounting brackets: 3.1 kg (6.8 lb)

• Enclosure Material : SGCC steel

• Supported Rack Depth

  • 400~1200 mm

  • (15.7-47.2")

• LCM Display  : 1.3" touchscreen

• Ambient Operating Temperature : -5 to 40° C (23 to 104° F)

• ESD/EMP Protection : Air: ± 16kV, contact: ± 12kV

• Ambient Operating Humidity : 10 to 90% noncondensing

• Certifications : CE, FCC, IC
