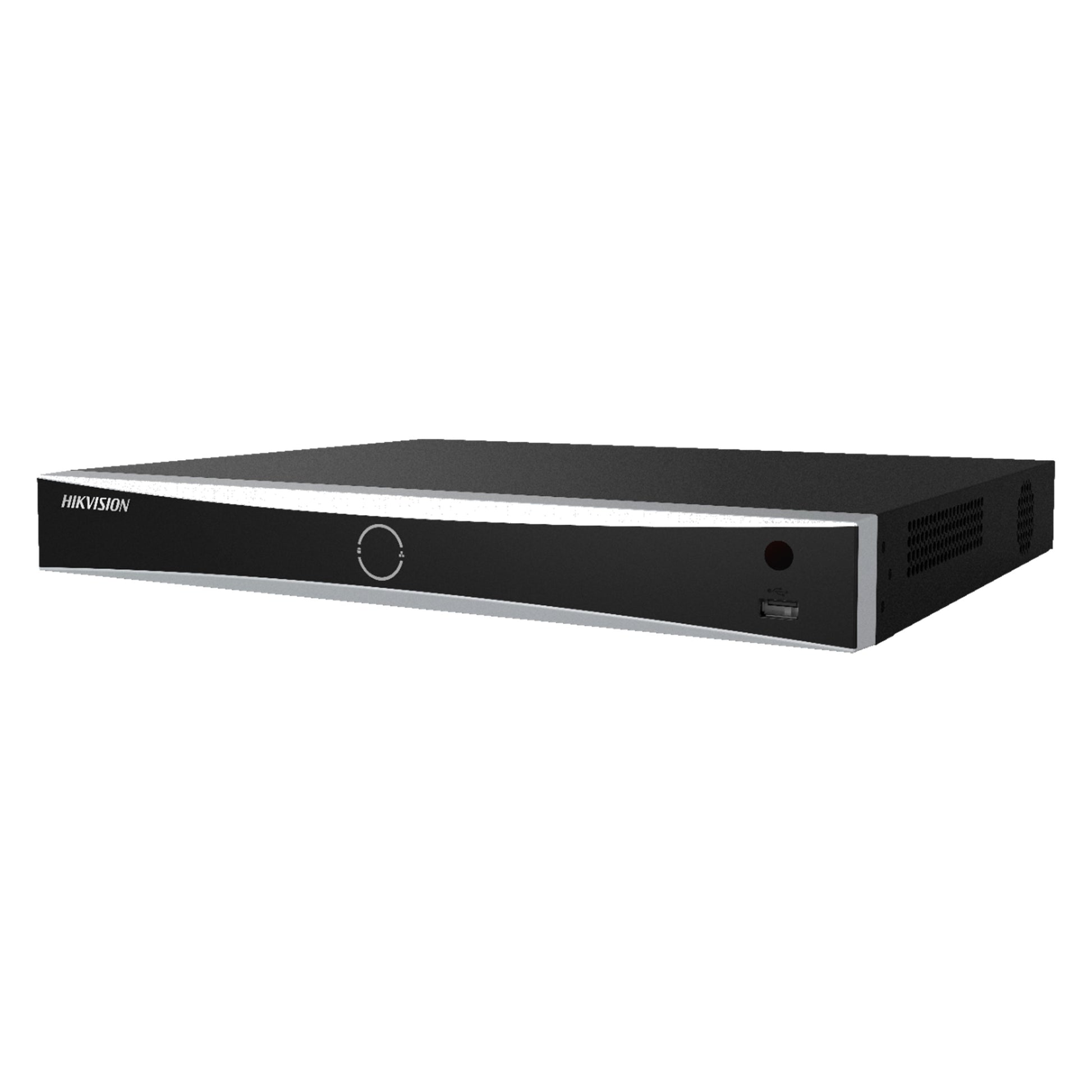

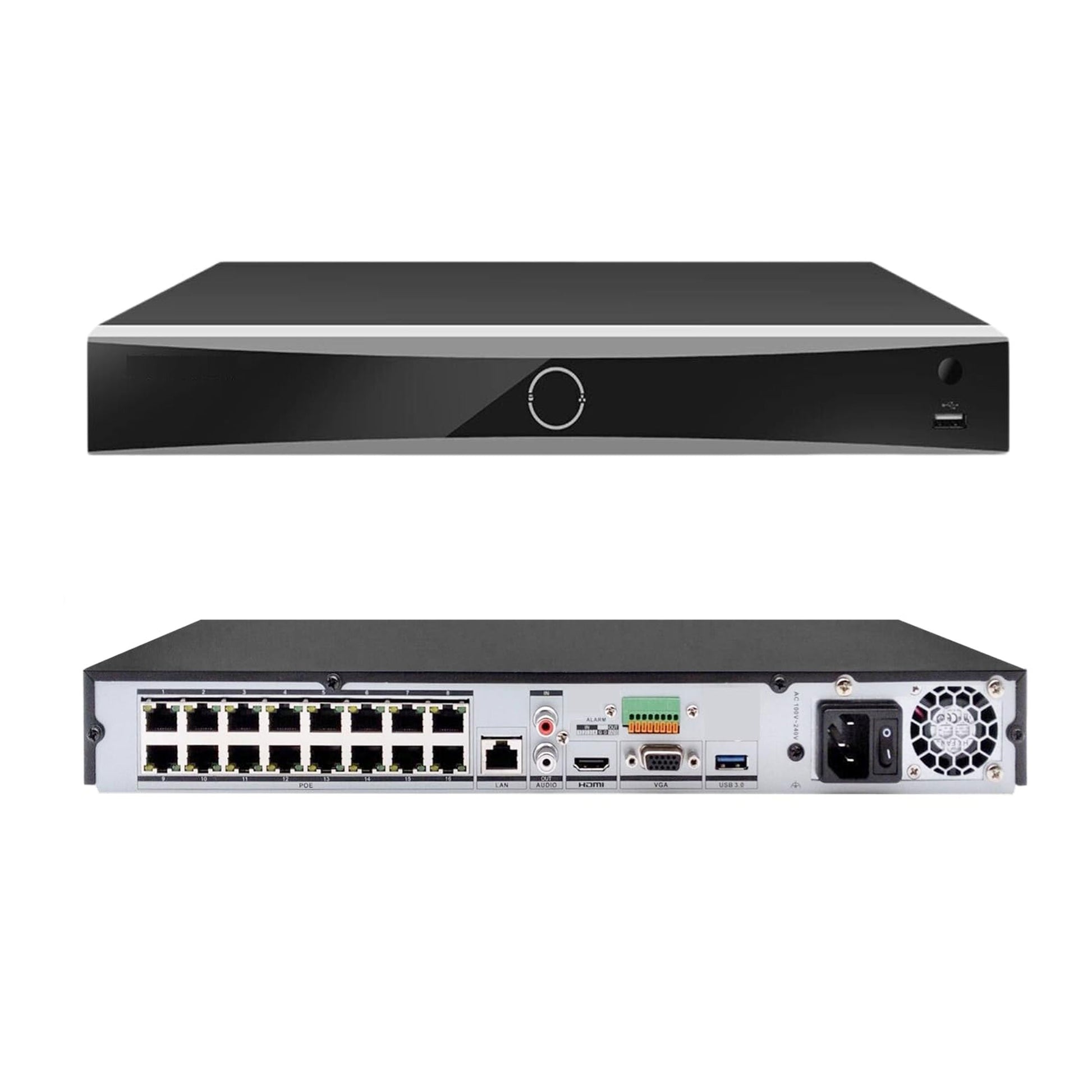

16-ch PoE 1U K Series AcuSense 4K NVR

• Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specification

Intelligent Analytics

• AI by Device Facial recognition, perimeter protection, motion detection 2.0

• AI by Camera

• Facial recognition, perimeter protection, throwing objects from building, motion

• detection2.0, ANPR, VCA


Facial Recognition

• Facial Detection and Analytics Face picture comparison, human face capture, face
• picture search

• Face Picture Library

• Up to 16 face picture libraries, with up to 20,000 face pictures in total (each
• picture ≤ 4

• MB, total capacity ≤ 1 GB)

• Facial Detection and Analytics

• Performance

• 1-ch, 8 MP

• Face Picture Comparison 4-ch


Motion Detection 2.0

• By Device

• All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video
• analysis for

• human and vehicle recognition to reduce false alarm

• By Camera All channels


Perimeter Protection

• By Device

• 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and
• vehicle

• recognition to reduce false alarm

• By Camera All channels


Video and Audio

• IP Video Input 16-ch

• Incoming Bandwidth 160 Mbps

• Outgoing Bandwidth 160 Mbps

• HDMI Output

• 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600×

• 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

• VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video Output Mode HDMI/VGA independent output

• CVBS Output N/A

• Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)


Decoding

• Decoding Format H.265/H.265+/H.264+/H.264

• Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3
• MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous playback 16-ch

• Decoding Capability

• AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-
• ch@1080p (30

• fps)

• AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-
• ch@1080p (30

• fps)

• Stream Type Video, Video & Audio

• Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC


Network

• Remote Connection 128

• API ONVIF (profile S/G); SDK; ISAPI

• Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or
• above version

• Network Protocol

• TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
• ISUP,

• UPnP™, HTTP, HTTPS

• Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface


PoE

• Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power ≤ 200 W

• Standard IEEE 802.3af/at


Auxiliary Interface

• SATA 2 SATA interfaces

• Capacity Up to 10 TB capacity for each HDD

• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

• Alarm In/Out 4/1


General

• GUI Language

• English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
• French,

• Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish

• Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian,
• Vietnamese,

• Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,

• Kyrgyz , Brazilian Portuguese, Indonesian

• Power Supply 100 to 240 VAC, 50 to 60 Hz

• Consumption ≤ 15 W (without HDD and PoE off)

• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity 10% to 90%

• Dimension (W × D × H) 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")

• Weight ≤ 3 kg (without HDD, 6.6 lb.)


Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014

• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

• Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA,
• LOA, BIS
