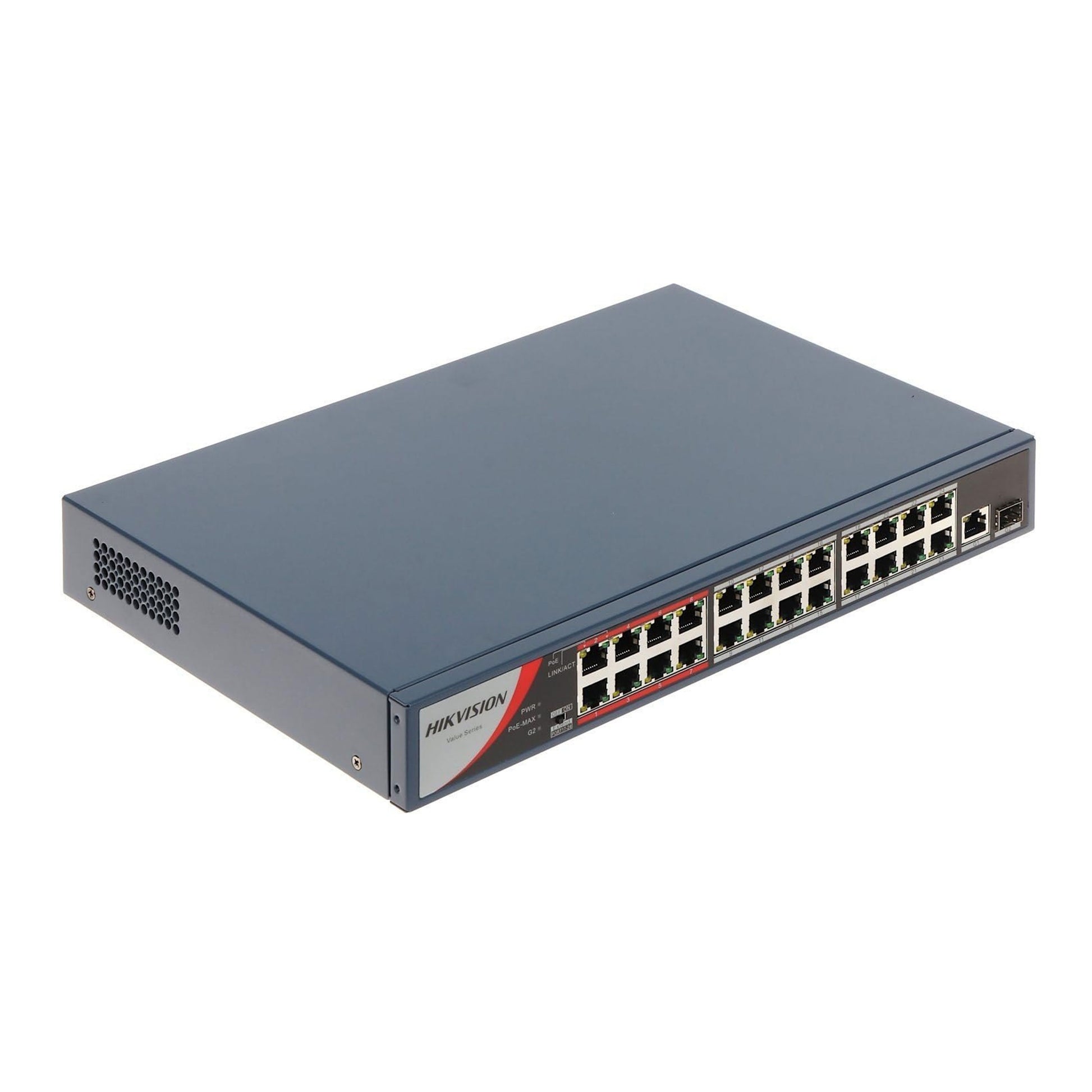

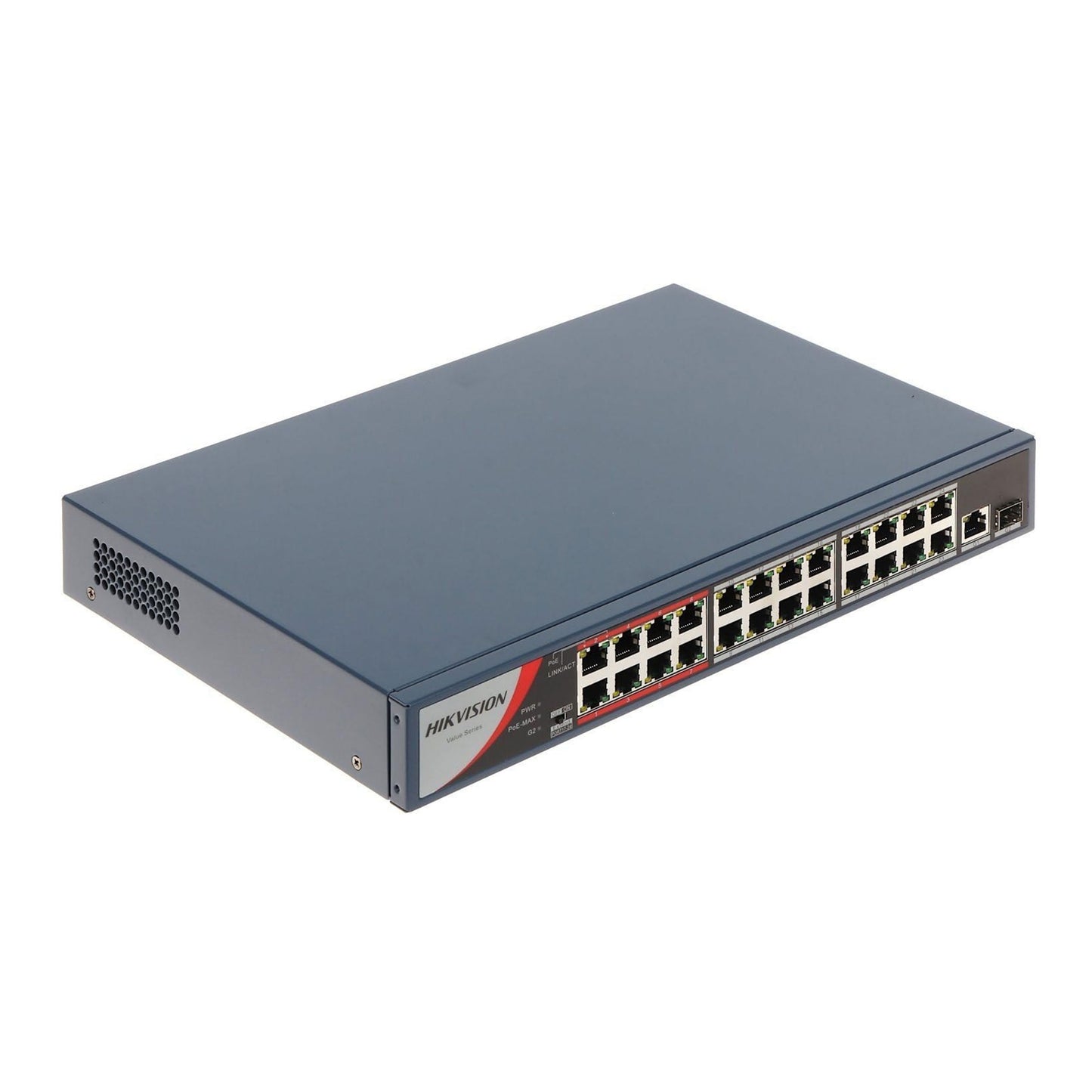

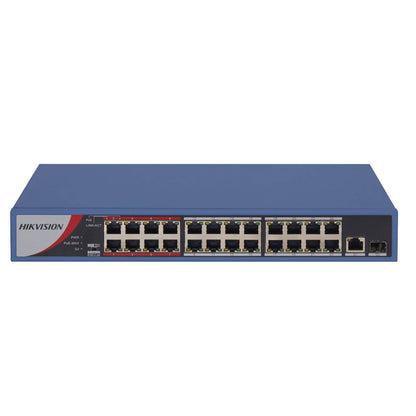

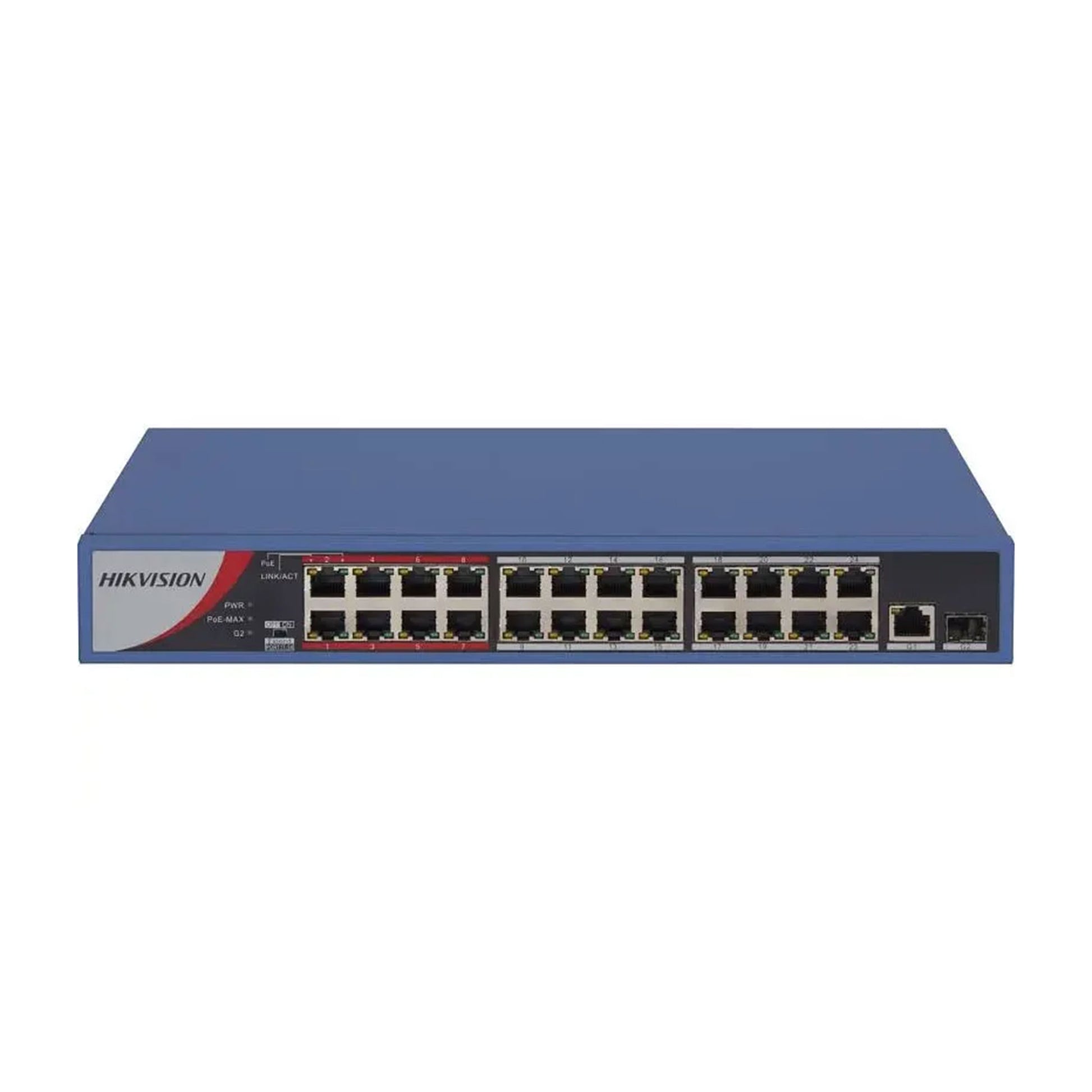

Hikvision 24Port Fast Ethernet Unmanaged PoE Switch DS-3E0326P-E/M

Hikvision 24Port Fast Ethernet Unmanaged PoE Switch DS-3E0326P-E/M

MVR4,500.00
Sold out

Availability: In stock
SKU: DS-3E0326P-E/M
Vendor: Hikvision
Category: Hubs & Switches
Tags: hikvision networking networkswitch

Shipping

Free shipping

View full product details

DS-3E0326P-E/M(C) switches are layer 2 100 Mbps PoE switches, providing advanced PoE power supply technology and
Gigabit networks design on the basis of high-performance access to ensure stable data upload. The switches support long
range, port isolation, and PoE watchdog function.

  •  Intelligent PoE Management
    When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch
    lifetime.
  •  Up to 300 m Long Range PoE Transmission
    The distance between IPCs and switch can reach maximum 300 meters.
  •  4/8-Core Adaptive Power Supply with Less Power Loss
    8-core power supply reduces the power loss on cables.
  •  6 kV Surge Protection to Improve Reliability in Harsh Environment
    The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  •  Design for Video Transmission
    VIP port ensures important data transmission when network congestion occurs.
Network
Parameters 24 × 10/100 Mbps PoE RJ45 port, 1 Gigabit RJ45 port, 1 Gigabit combo port
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode Standard mode (default); Extend mode
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode Store-and-forward switching
High Priority Ports Ports 1 to 8
MAC Address Table 8 K
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 6.547 Mpps
Internal Cache 4 Mbits
PoE Power Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Ports 1 to 24
Max. Port Power 30 W
PoE Power Budget 230 W
Dialing Function
Long Range Ports 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
General
Dimensions (W × H × D) 335.0 mm × 44.5 mm × 226.0 mm (13.19'' × 1.75'' × 8.90'')
Shell Metal material
Gross Weight 2.65 kg (5.84 lb)
Net Weight 1.90 kg (4.20 lb)
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity 5% to 95% (no condensation)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity 5% to 95% (no condensation)
Power Supply AC 100 to 240 V, 50/60 Hz, Max. 4 A
Power Consumption in Idle 20 W
Max. Power Consumption 250 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
