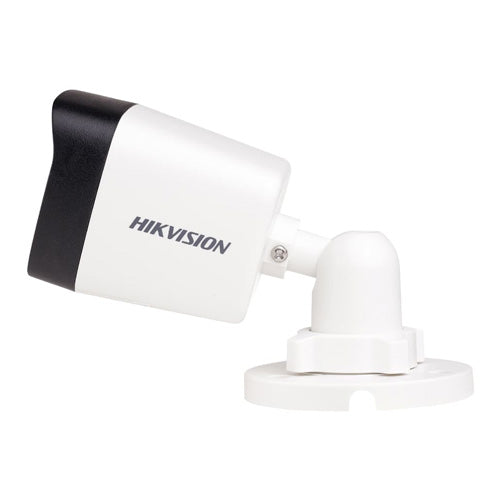

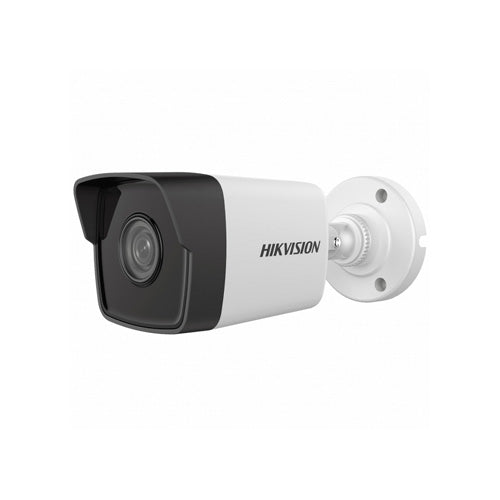

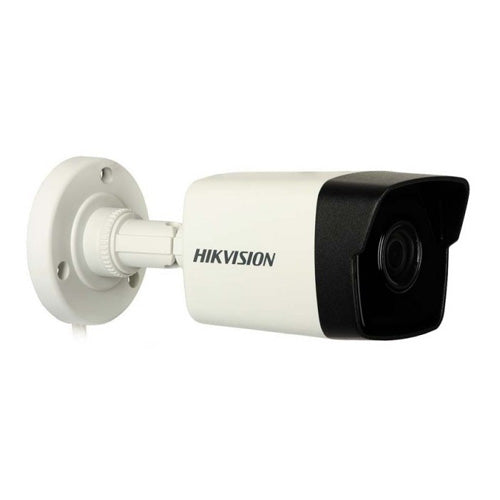

High quality imaging with 2 MP resolution
Water and dust resistant (IP67)
Easy installation with Power over Ethernet (PoE) technology

Camera

• Image Sensor1/2.9" Progressive Scan CMOS
  Max. Resolution1920 × 1080
  Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  Shutter Time1/3 s to 1/100,000 s
  Day & NightIR cut filter
  Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
  Focal Length & FOV
• 2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°
• 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
• Lens MountM12
  Iris TypeFixed
  ApertureF2.2

DORI

• DORI
  2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m
  4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light TypeIR
  Supplement Light RangeUp to 20 m
  Smart Supplement LightYes
  IR Wavelength850 nm

Video

• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264
• Video Bit Rate32 Kbps to 8 Mbps
  H.264 TypeBaseline Profile,Main Profile,High Profile
  H.265 TypeMain Profile
  Bit Rate ControlCBR,VBR

Network

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
  Simultaneous Live ViewUp to 6 channels
  APIISAPI,SDK
  ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
  User/Host
• Up to 32 users
• 3 user levels: administrator, operator, and user
• ClientiVMS-4200
  Web Browser
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR)Digital WDR
  SNR≥ 52 dB
  Day/Night SwitchDay,Night,Auto,Schedule
  Image EnhancementBLC,HLC,3D DNR
  Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic EventMotion detection, exception
  LinkageNotify surveillance center
  General
  Power
• 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
• PoE: IEEE 802.3af, Class 3, max. 6.5 W
• MaterialPlastic
  Dimension138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")
  Package Dimension163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
  WeightApprox. 175 g (0.4 lb.)
  With Package WeightApprox. 250 g (1.1 lb.)
  Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  LanguageEnglish, Ukrainian
  General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval

• EMC
• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• Safety
• CB: IEC 62368-1: 2014+A11,
• CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment
• CE-RoHS: 2011/65/EU,
• WEEE: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• ProtectionIP67: IEC 60529-2013
