Hikvision 16-Port Gigabit Unmanaged PoE DS-3E0518P-E/M

Hikvision 16-Port Gigabit Unmanaged PoE DS-3E0518P-E/M

MVR0.00
Sold out

Availability: Out of stock
SKU: DS-3E0518P-E/M
Vendor: Hikvision
Category: Hubs & Switches
Tags: hikvision networking networkswitch

Shipping

Free shipping

View full product details

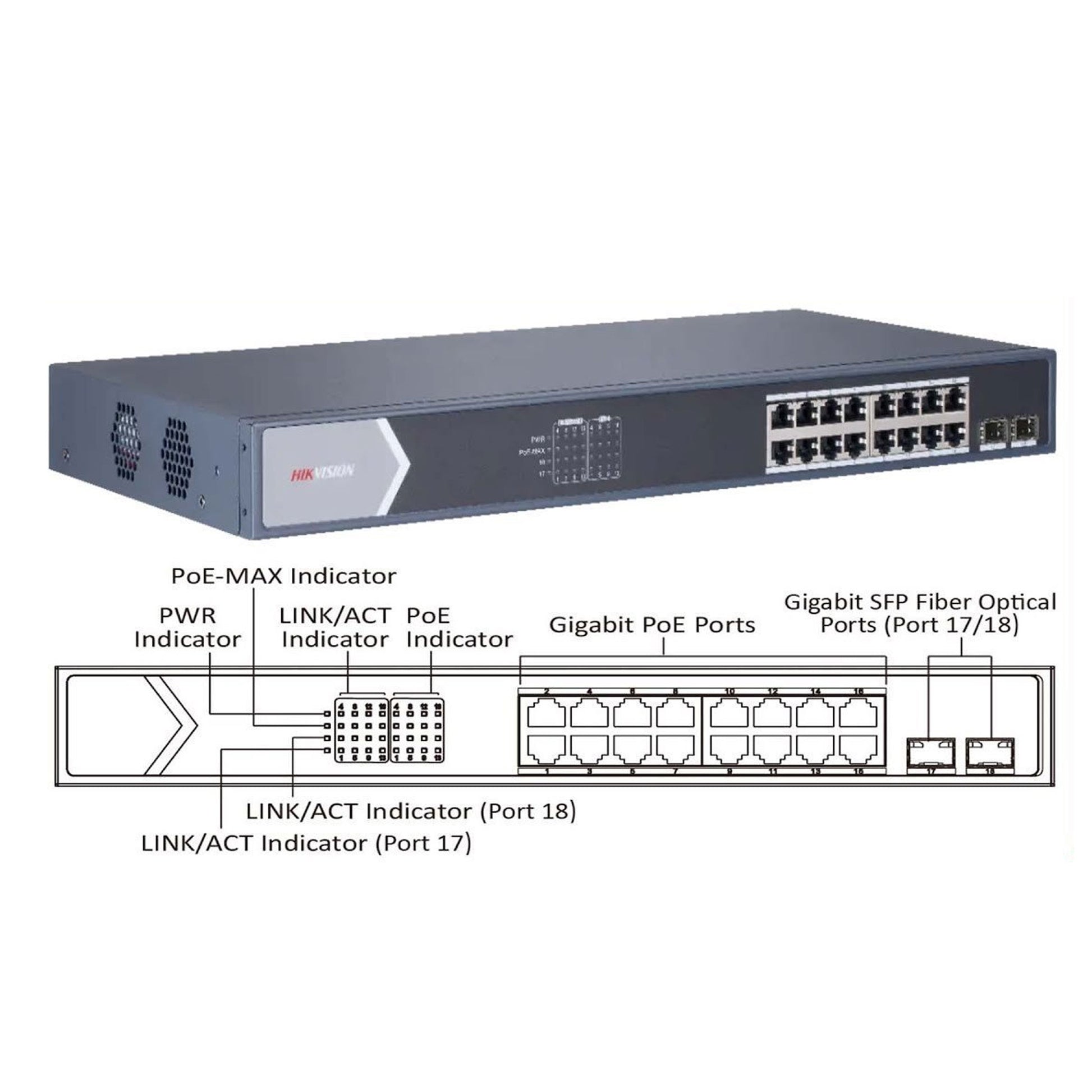

  • 16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
  • IEEE 802.3at/af standard
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
  • 6 KV surge protection for PoE ports
  • PoE power management
  • Gigabit network access
  • Wire-speed forwarding
  • Store-and-forward switching
  • Solid high-strength metal shell

Network Parameters

  • Ports16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table8 K
  • Switching Capacity36 Gbps
  • Packet Forwarding Rate26.784 Mpps
  • Internal Cache4.1 Mbits

PoE Power Supply

  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(-), 3/6(+)
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget125 W

General

  • Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm
  • ShellMetal material, fan-free design
  • Gross Weight2.50 kg (5.51 lb)
  • Net Weight3.57 kg (7.87 lb)
  • Operating Temperature -10°C to 55 °C (14 °F to 131 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, 2.5 A (Max)
  • Power Consumption in Idle25 W
  • Max. Power Consumption150 W
  • Ports16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table8 K
  • Switching Capacity36 Gbps
  • Packet Forwarding Rate26.784 Mpps
  • Internal Cache4.1 Mbits
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(-), 3/6(+)
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget125 W
