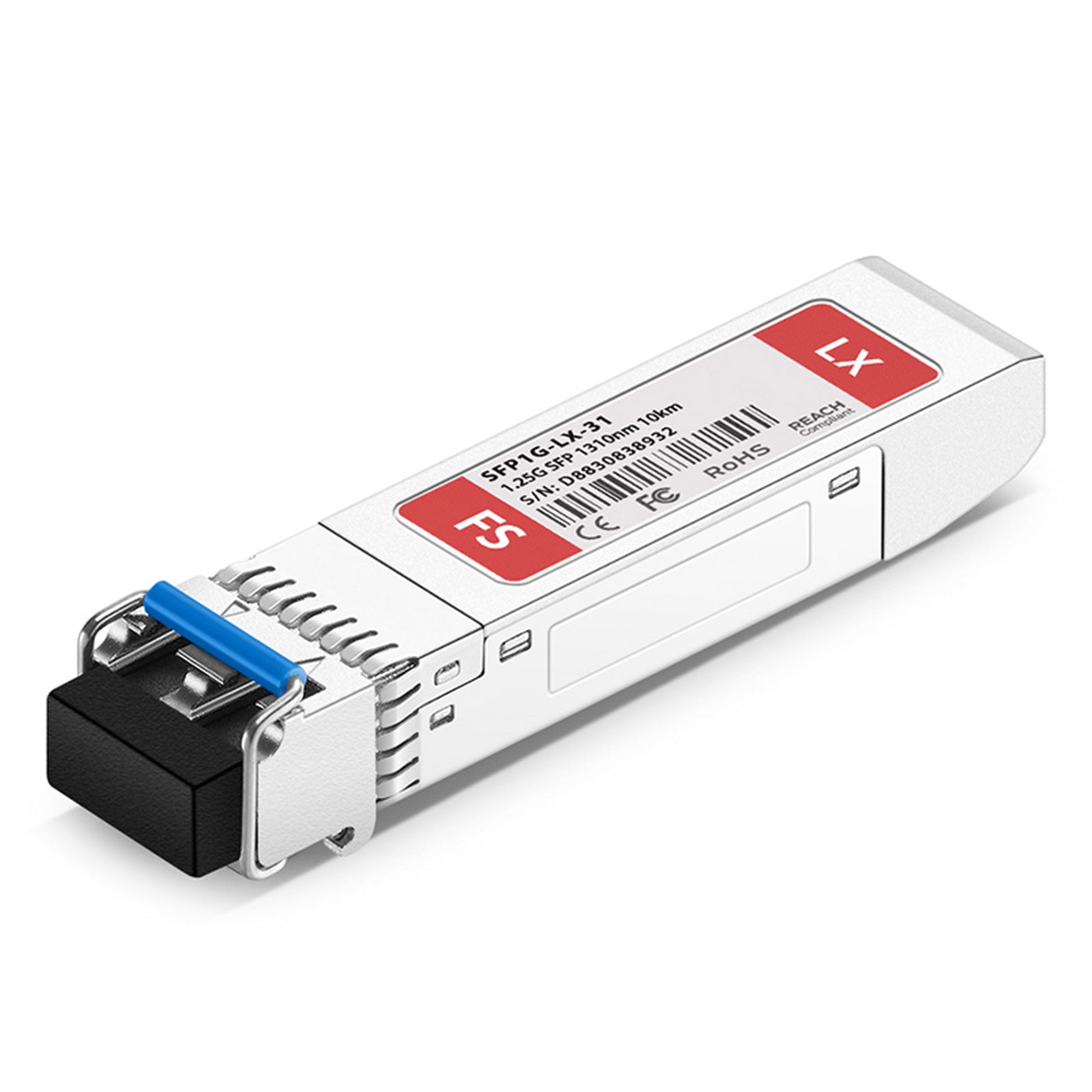

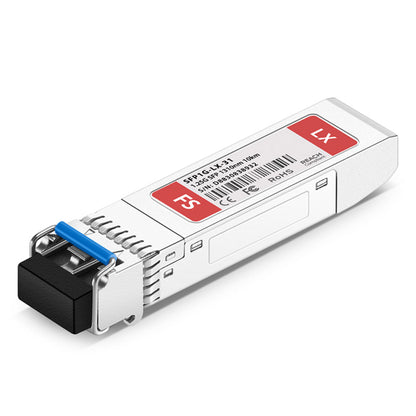

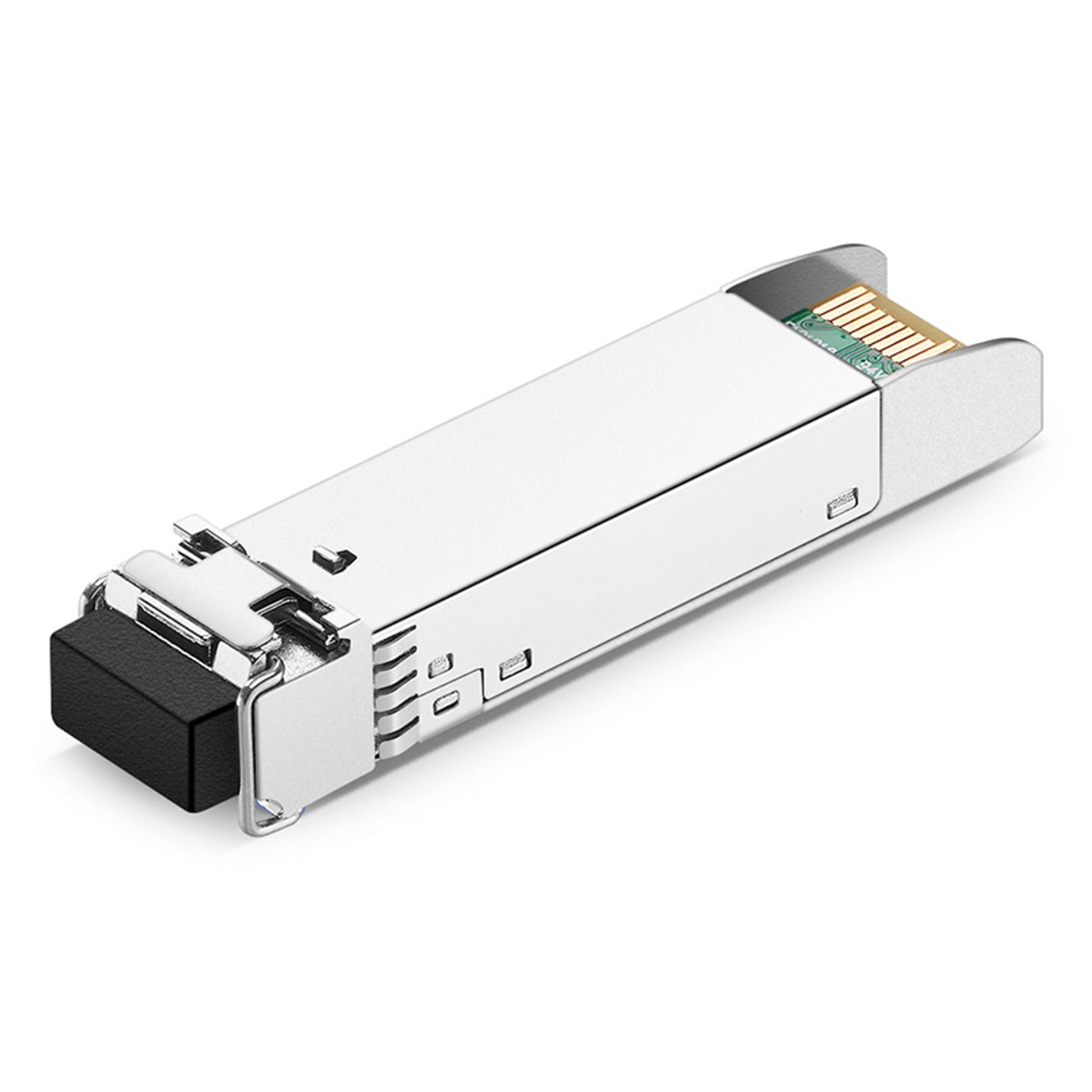

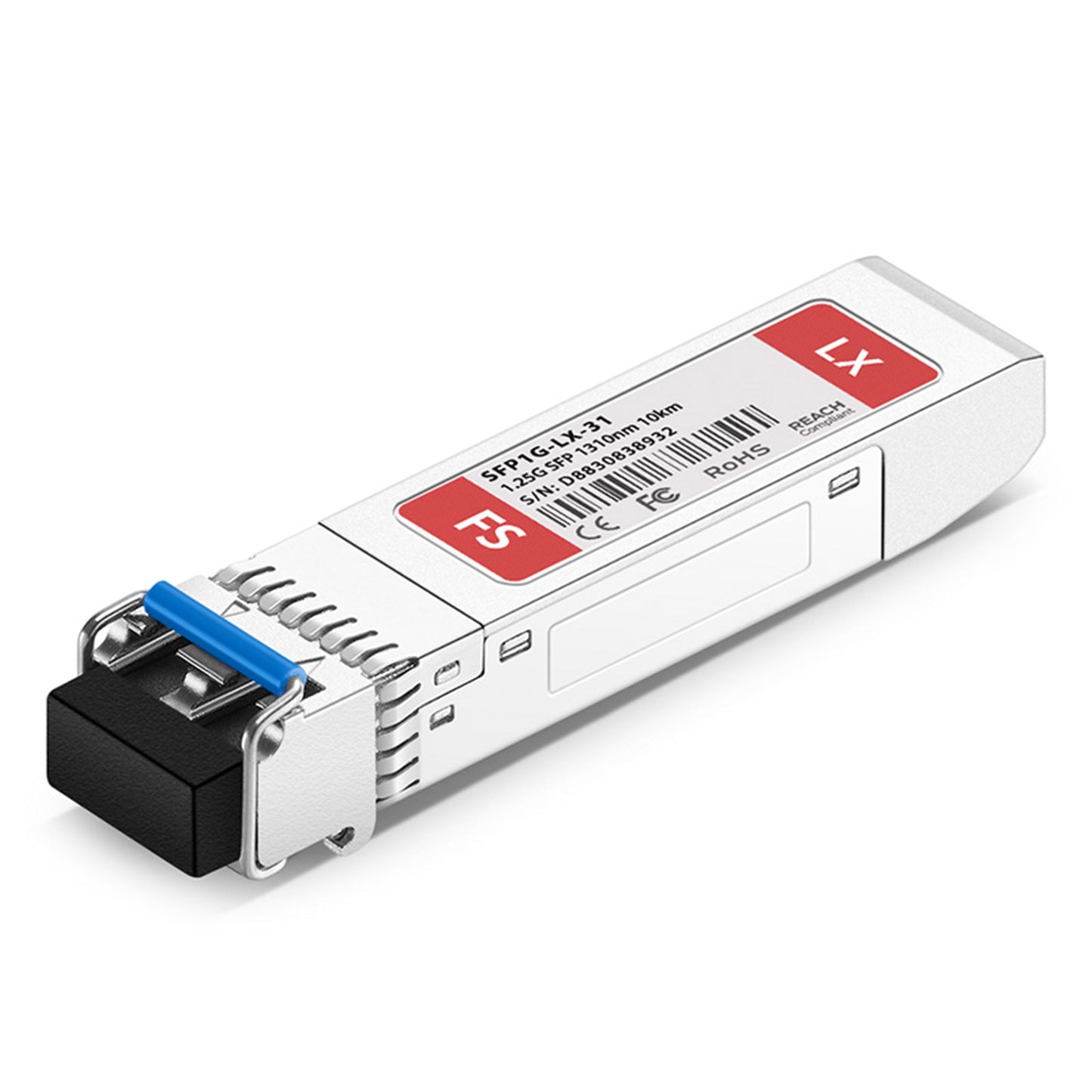

FS 1000BASE-LX-31 SFP 1310nm 10km Transceiver single Mode

FS 1000BASE-LX-31 SFP 1310nm 10km Transceiver single Mode

MVR550.00
Sold out

Availability: In stock
SKU: SFP1G-lX-31
Vendor: FS
Category: Network Transceivers
Tags: FS networking Transceivers

Shipping

Free shipping

View full product details
  • Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
  • Max. Power Consumption 1W Allowing for Prolonged Service Life
  • Commercial Temperature Range 0 to 70°C (32 to 158°F)
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • FS BOX - Support Real-time Configuration
  • Compliant to IEEE 802.3z Gigabit Ethernet
  • Class 1 FDA Laser Safety and RoHS Compliant
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Cisco SFP-1G-LH compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Property Value
Cisco Compatible SFP-1G-LH
Vendor Name FS
Form Factor SFP
Max. Data Rate 1.25Gbps
Wavelength 1310nm
Max. Cable Distance 10km@SMF

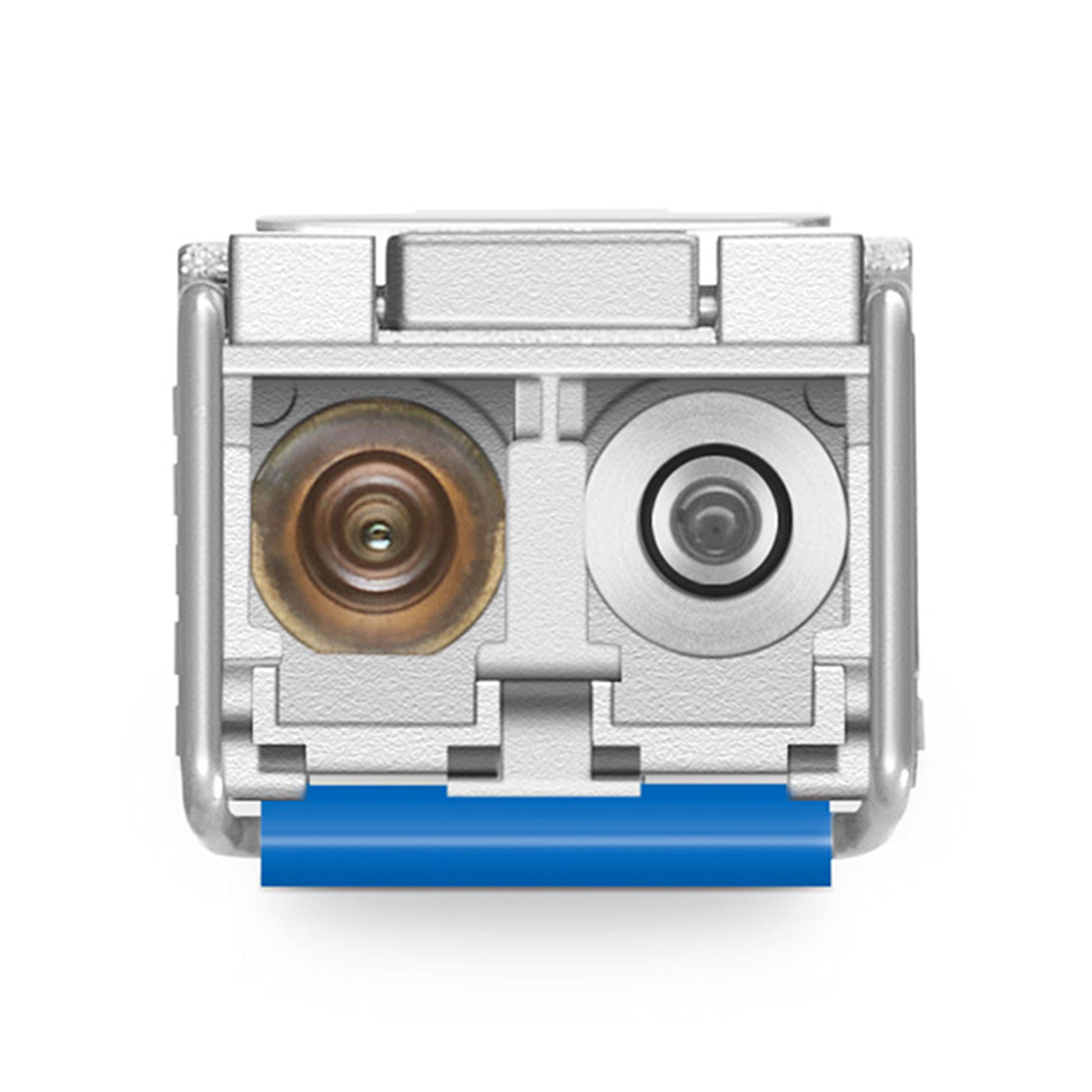

Connector Duplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -9.5 ~ -3dBm
Receiver Sensitivity < -20dBm
Power Consumption ≤1W
Receiver Overload -3dBm
Bit Error Ratio (BER) 1E-12
Extinction Ratio >9dB
EMC (Electro Magnetic Compatibility) Supported
MTBF (LX) 4,761,904 Hours
