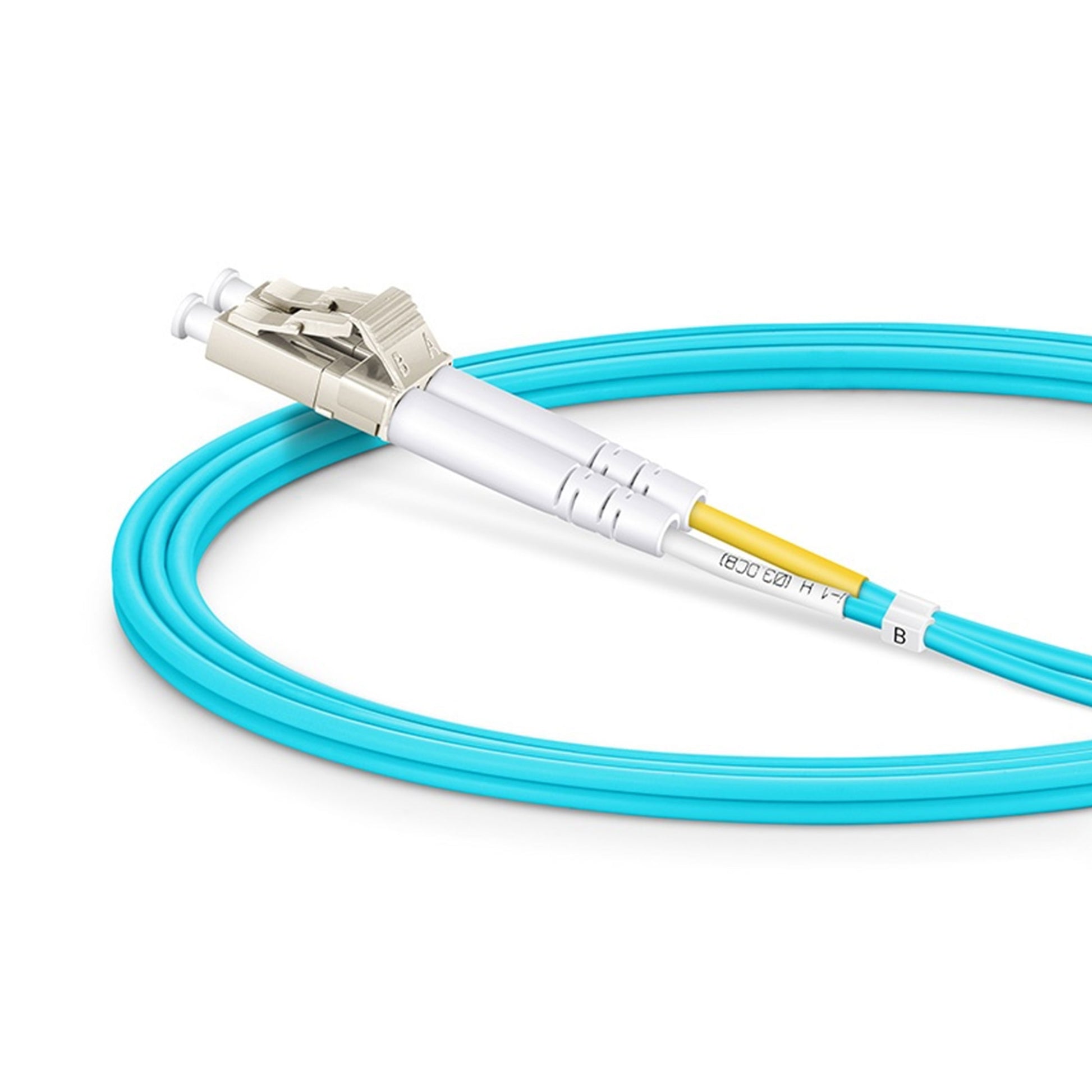

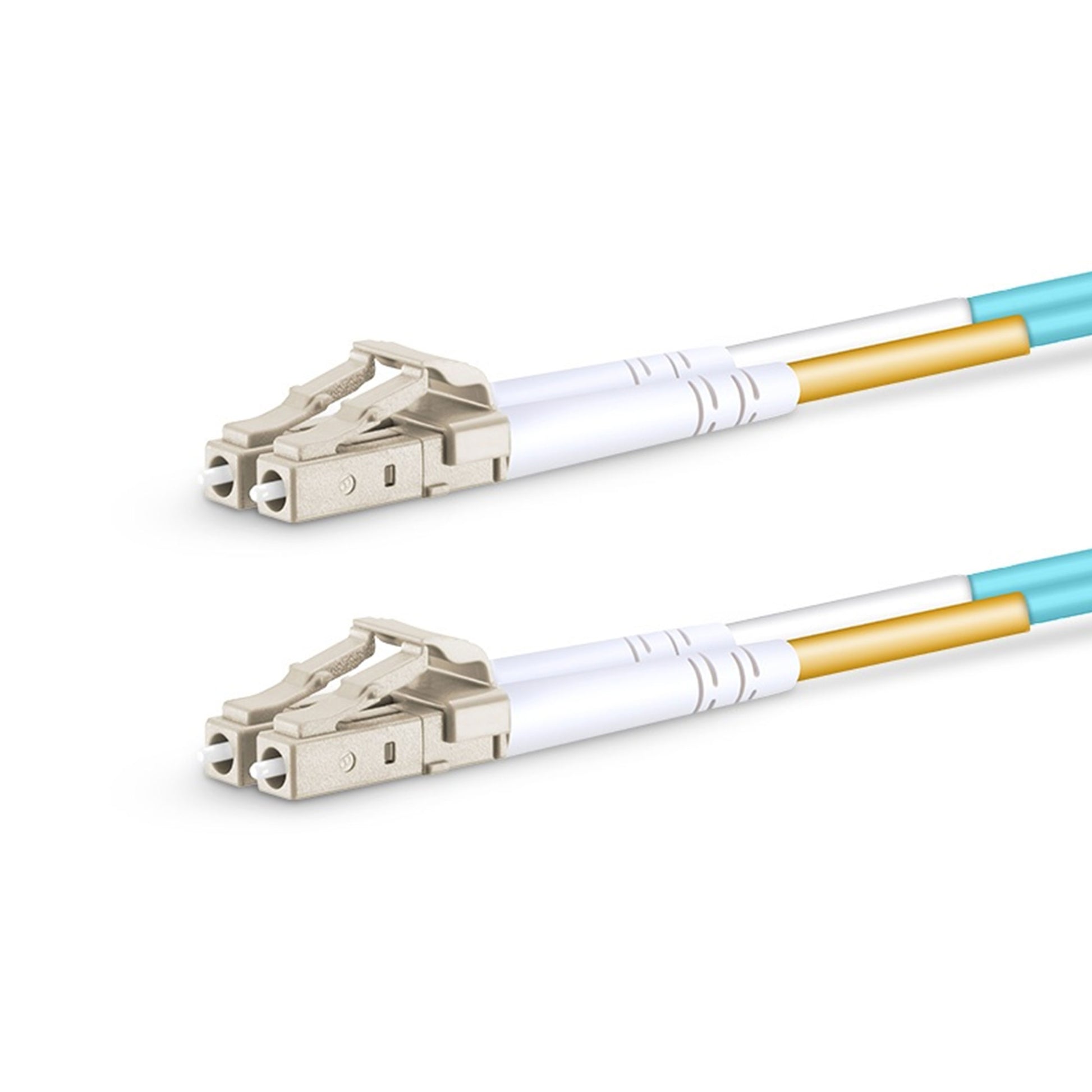

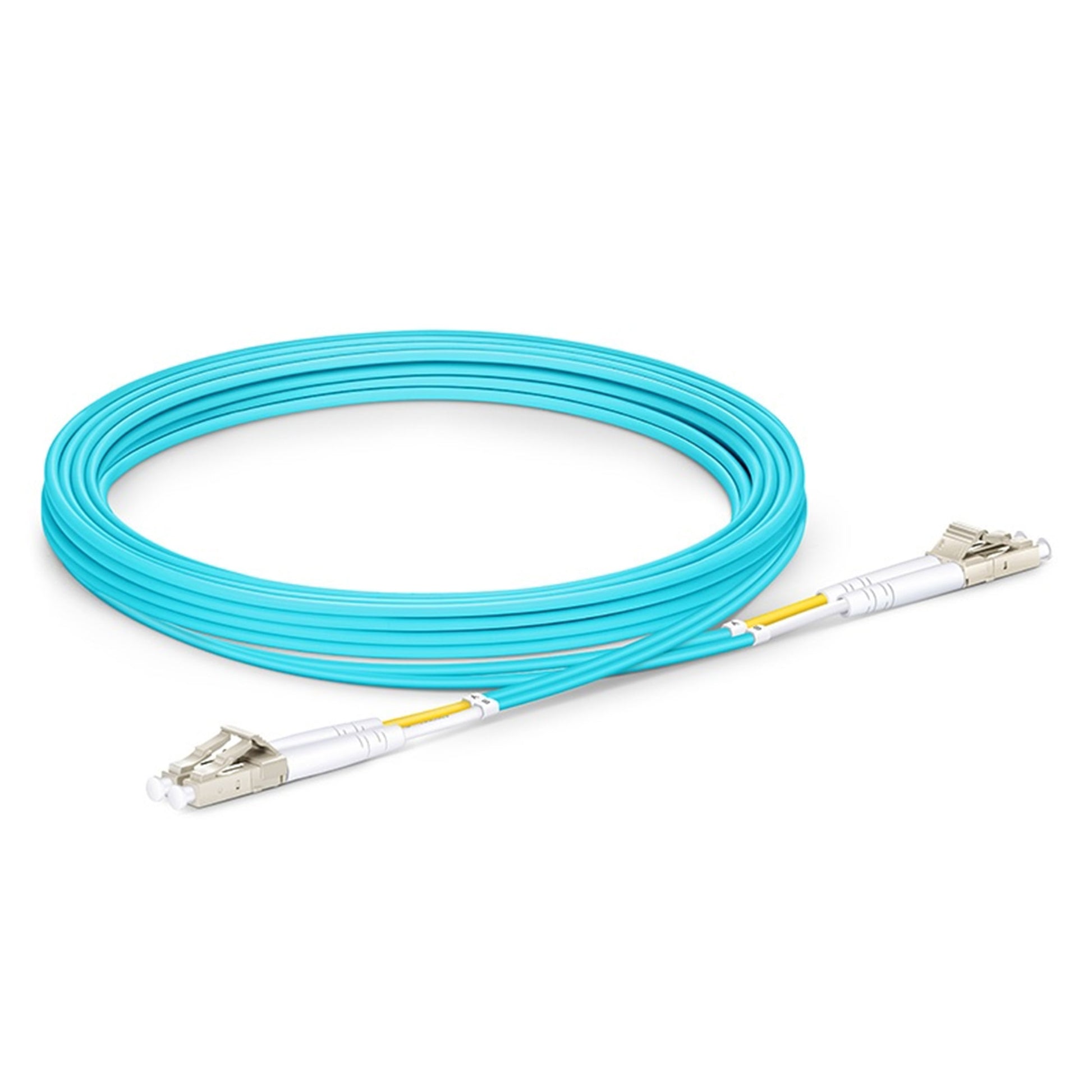

Duplex Fiber Patch Cable 1.5m , LC UPC to LC UPC, 2 Fibers, Multimode (OM3)

Duplex Fiber Patch Cable 1.5m , LC UPC to LC UPC, 2 Fibers, Multimode (OM3)

MVR350.00
Sold out

Availability: In stock
SKU: 88537
Vendor: FS
Category: Network Cables
Tags: FiberCables networking

Shipping

Free shipping

View full product details
  • Bend Insensitive Fiber & 7.5mm Min. Bend Radius
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Riser (OFNR) Jacket for Vertical and Floor-to-floor Installations
  • Color-Coded Cable Jacket for Easy Identification
  • Zipcord Reinforced Fiber and Reduces Crimping Risk
Specification Value
Connector A LC UPC Duplex
Connector B LC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade Bend Insensitive
Fiber Mode OM3 50/125μm
Wavelength 850/1300nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Cable Jacket Riser (OFNR)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB
Return Loss ≥30dB
Attenuation at 850 nm 3.0dB/km
Attenuation at 1300 nm 1.0dB/km
Operating Temperature -20 to 70°C (-4 to 158℉)
Storage Temperature -40 to 80°C (-40 to 176℉)
