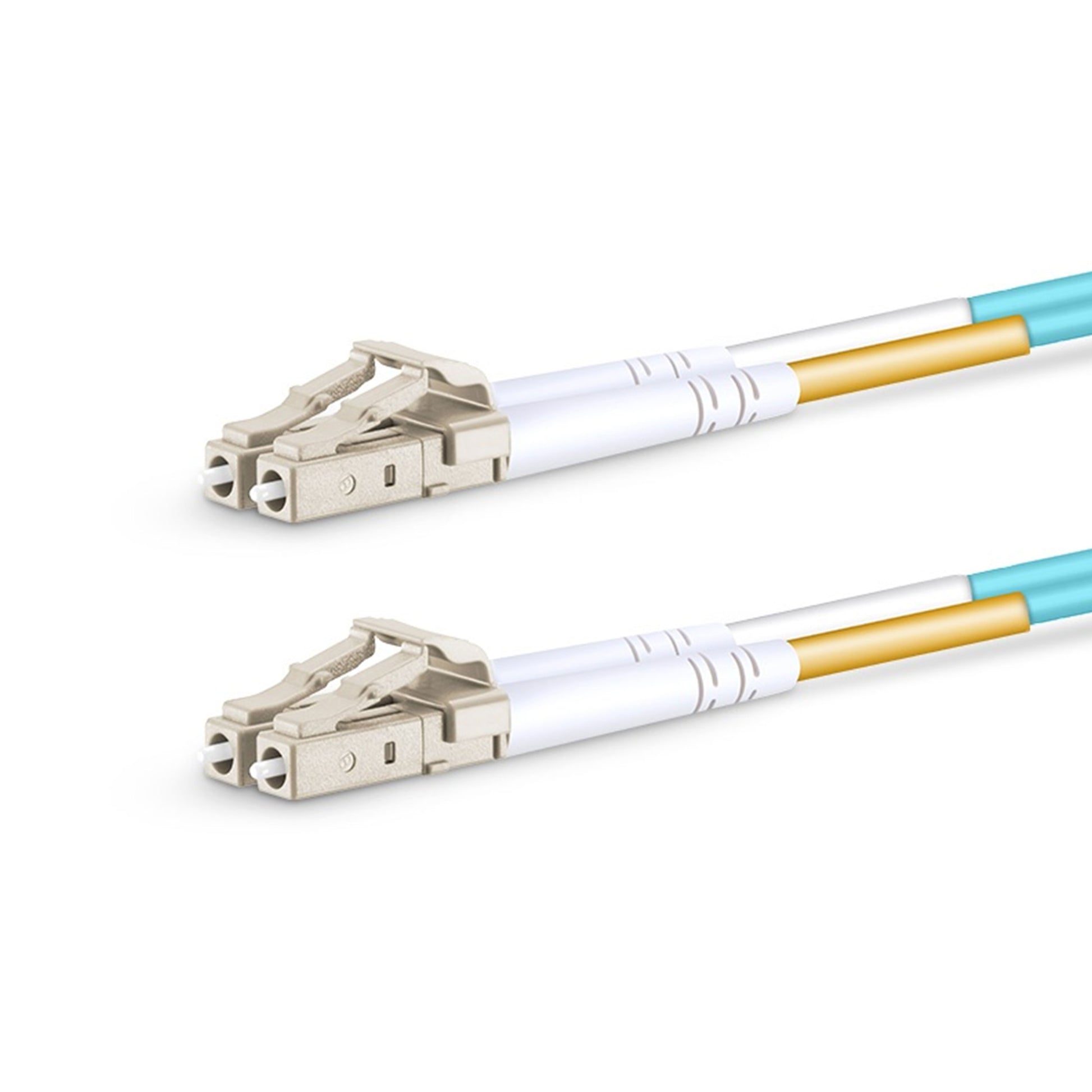

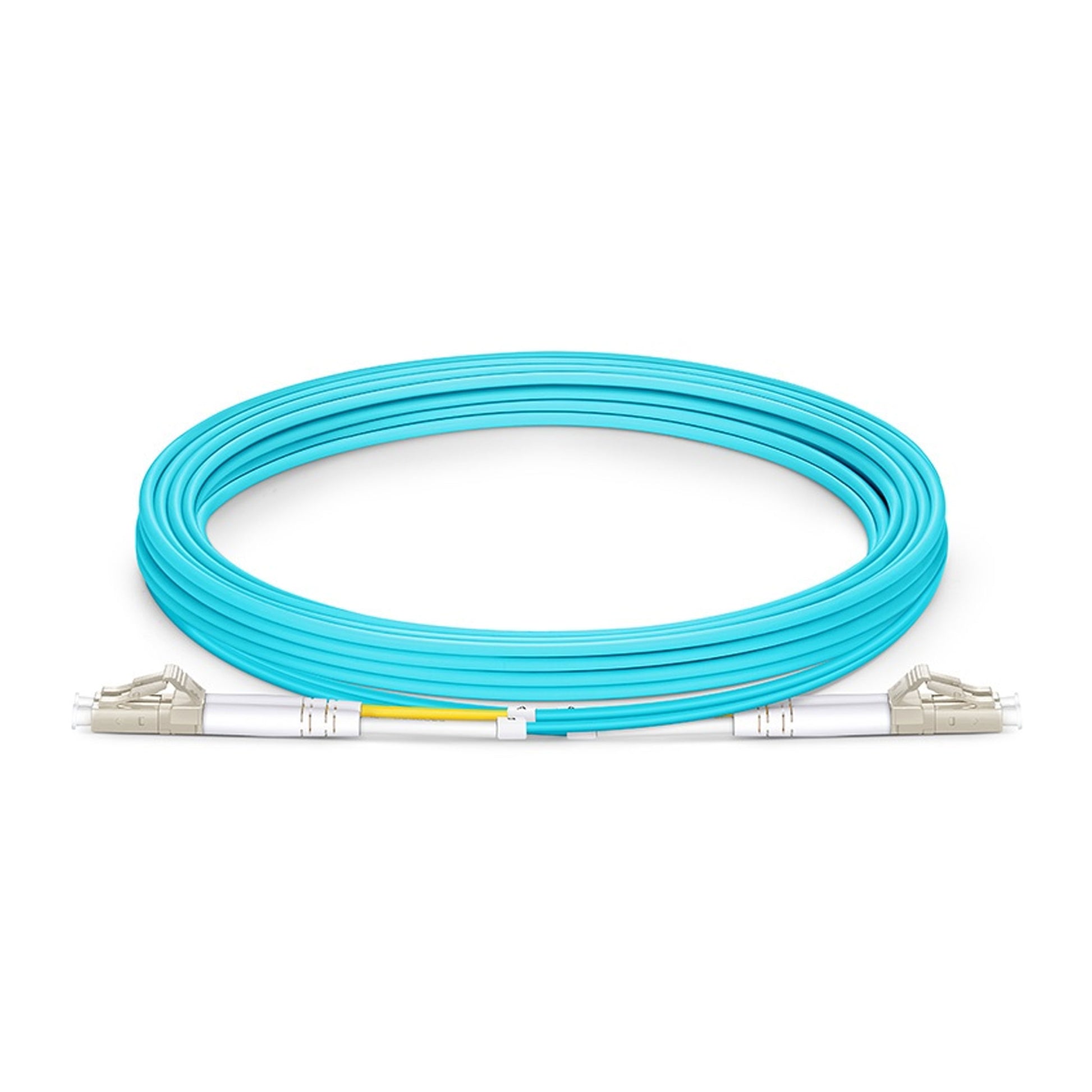

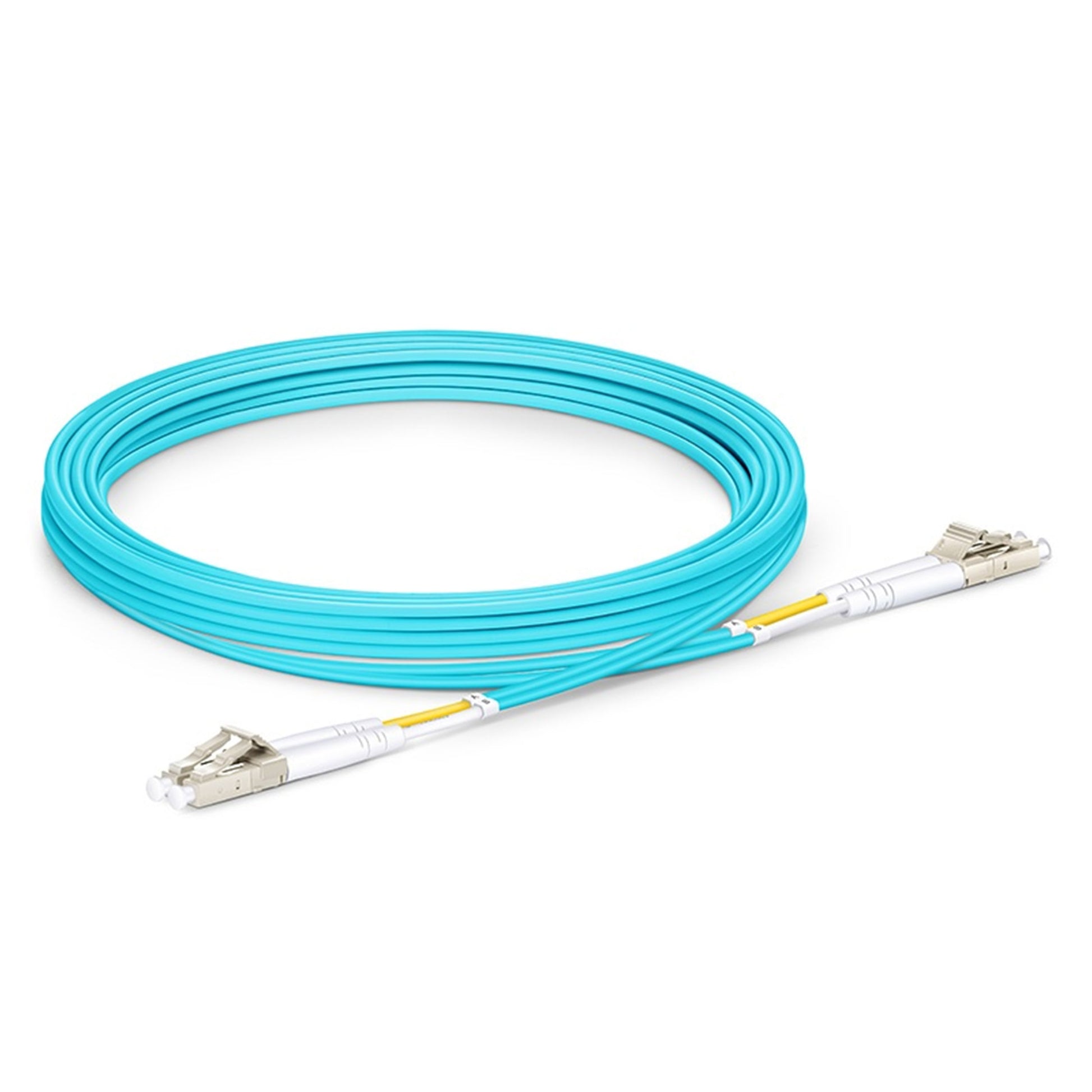

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM3 fiber patch cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
| Specification | Value |
|---|---|
| Connector A | LC UPC Duplex |
| Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers |
| Fiber Grade | Bend Insensitive |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm |
| Cable Jacket | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times |
| Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥30dB |
| Attenuation at 850 nm | 3.0dB/km |
| Attenuation at 1300 nm | 1.0dB/km |
| Operating Temperature | -20 to 70°C (-4 to 158℉) |
| Storage Temperature | -40 to 80°C (-40 to 176℉) |
