Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

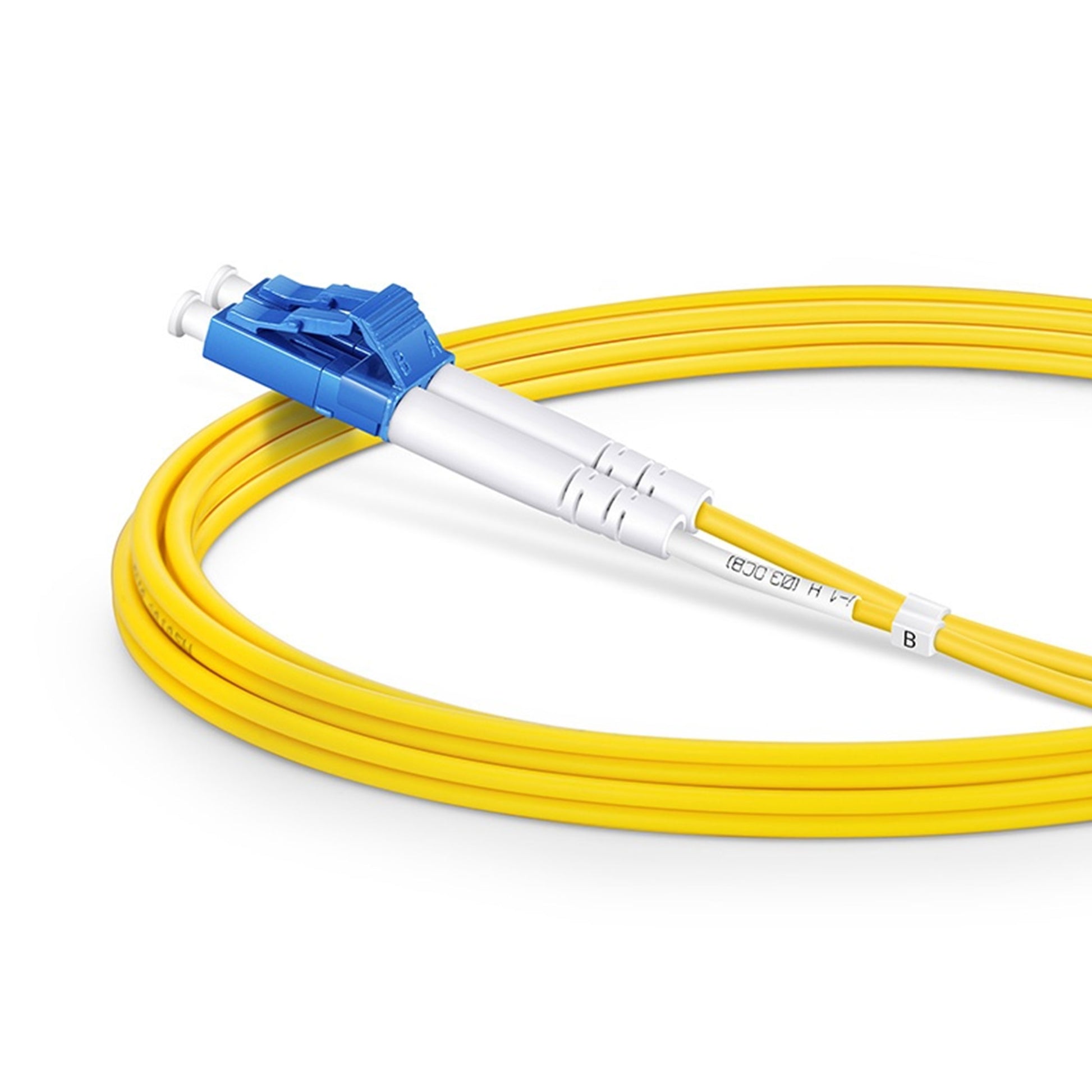

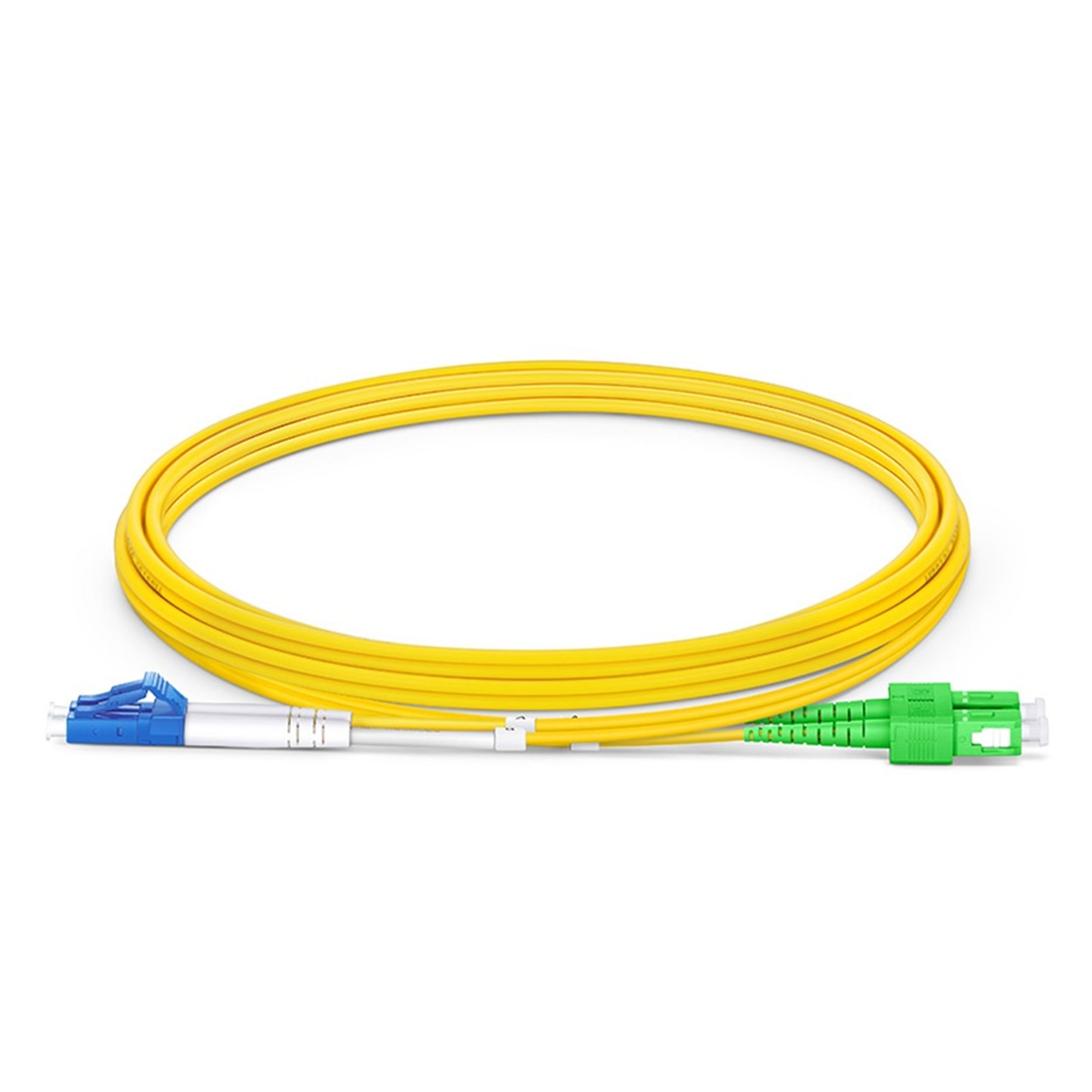

| Connector A | LC UPC Duplex |

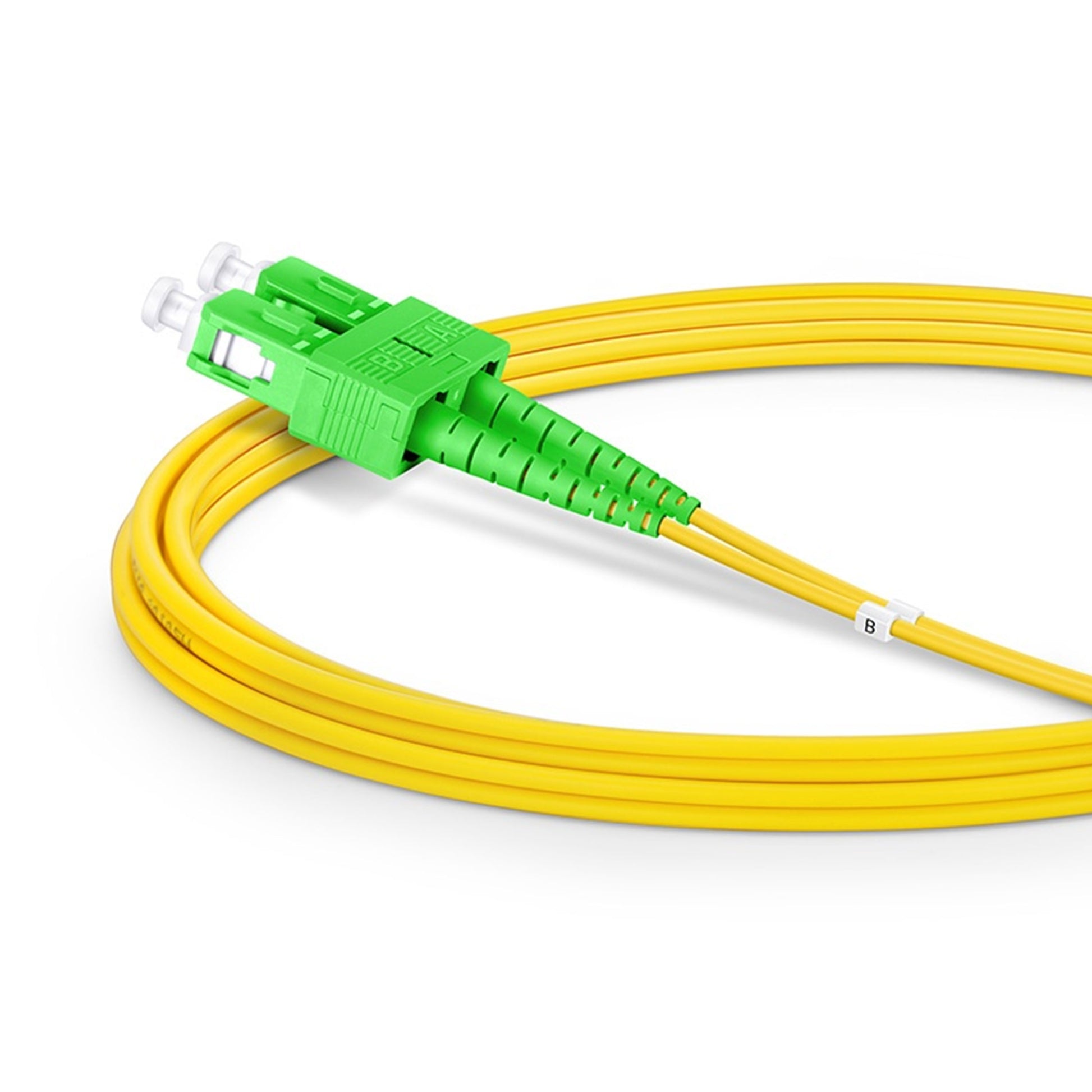

| Connector B | SC APC Duplex |
| Fiber Count | 2 Fibers |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm |
| Cable Jacket | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times |
| Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB |
| Return Loss | UPC≥50dB, APC≥60dB |
| Attenuation at 1310 nm | 0.36dB/km |
| Attenuation at 1550 nm | 0.22dB/km |
| Operating Temperature | -20 to 70°C (-4 to 158℉) |
| Storage Temperature | -40 to 80°C (-40 to 176℉) |
